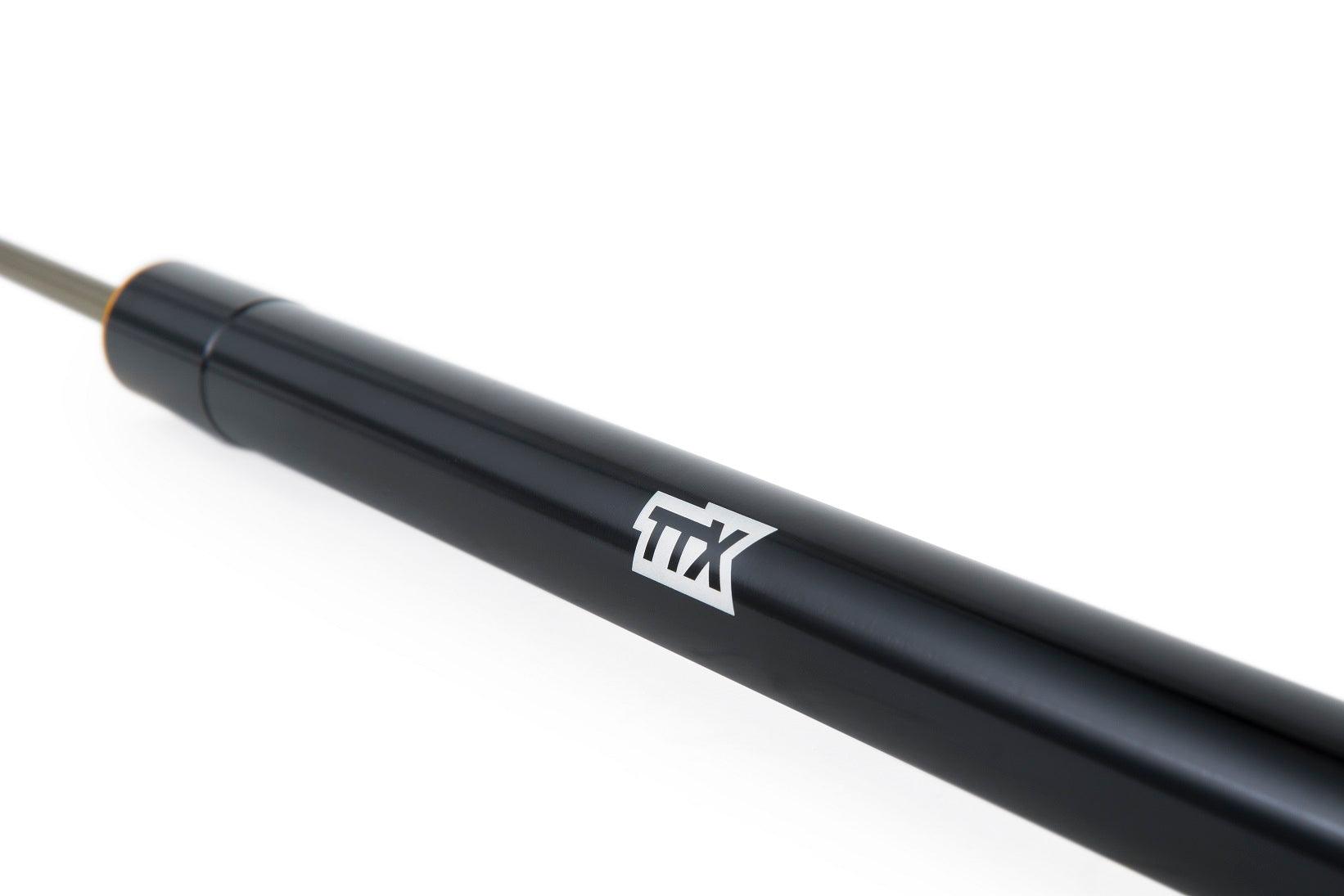

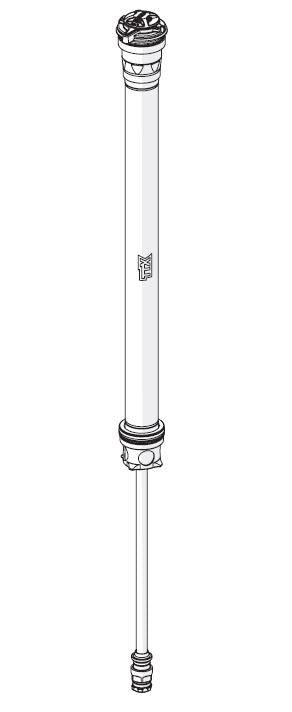

Öhlins Damping cartridge TTX18

With this cartridge Öhlins RXF36 forks of the first generation can be converted to the current damping of the RXF m.2. The proven TTX 18 cartridge from the DH RACE FORK is used in a revised version in the new Öhlins MTB fork RXF36 m.2 to ensure optimum control and traction on trails and enduro races. The cartridge has an optimized 18 mm piston and TTX technology for finer and faster response and an increased range of damping characteristics. The damping adjustment range has been optimized for trails and enduro use and features 15 clicks each for low-speed rebound and compression and 3 clicks for high-speed compression including "Climb Mode" setting.

Technical specifications:
Closed system, easy installation
Suitable depending model
- for all travels of RXF 36 forks (max.180mm)
- for all RXF38 forks
- for all DH38 forks

Adjustment options:
Compression Low-Speed 15 clicks
Compression High-Speed 5 clicks
Rebound Low-Speed 15 clicks incl. Climb Mode

Scope of delivery:
1x TTX18 cartridge
