intend BC
BANDIT

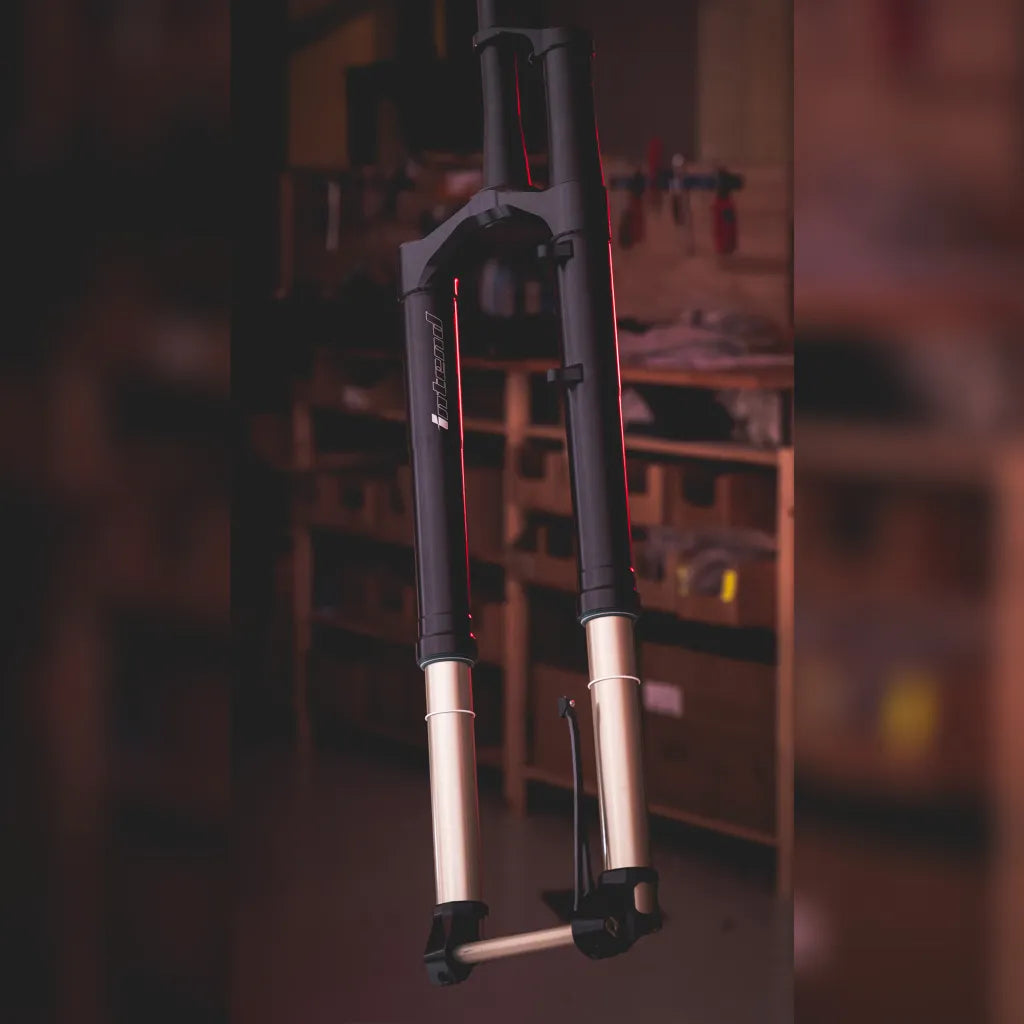

MEET THE BANDIT - NEXT GENERATION PERFORMANCE
This fork pushes the boundaries to a new level. Downhill bike or Enduro bike? We thought "Why not both?"
No more compromises! A bit more weight than competitive enduro forks, but performance on another level.
Attention: Limited stock!

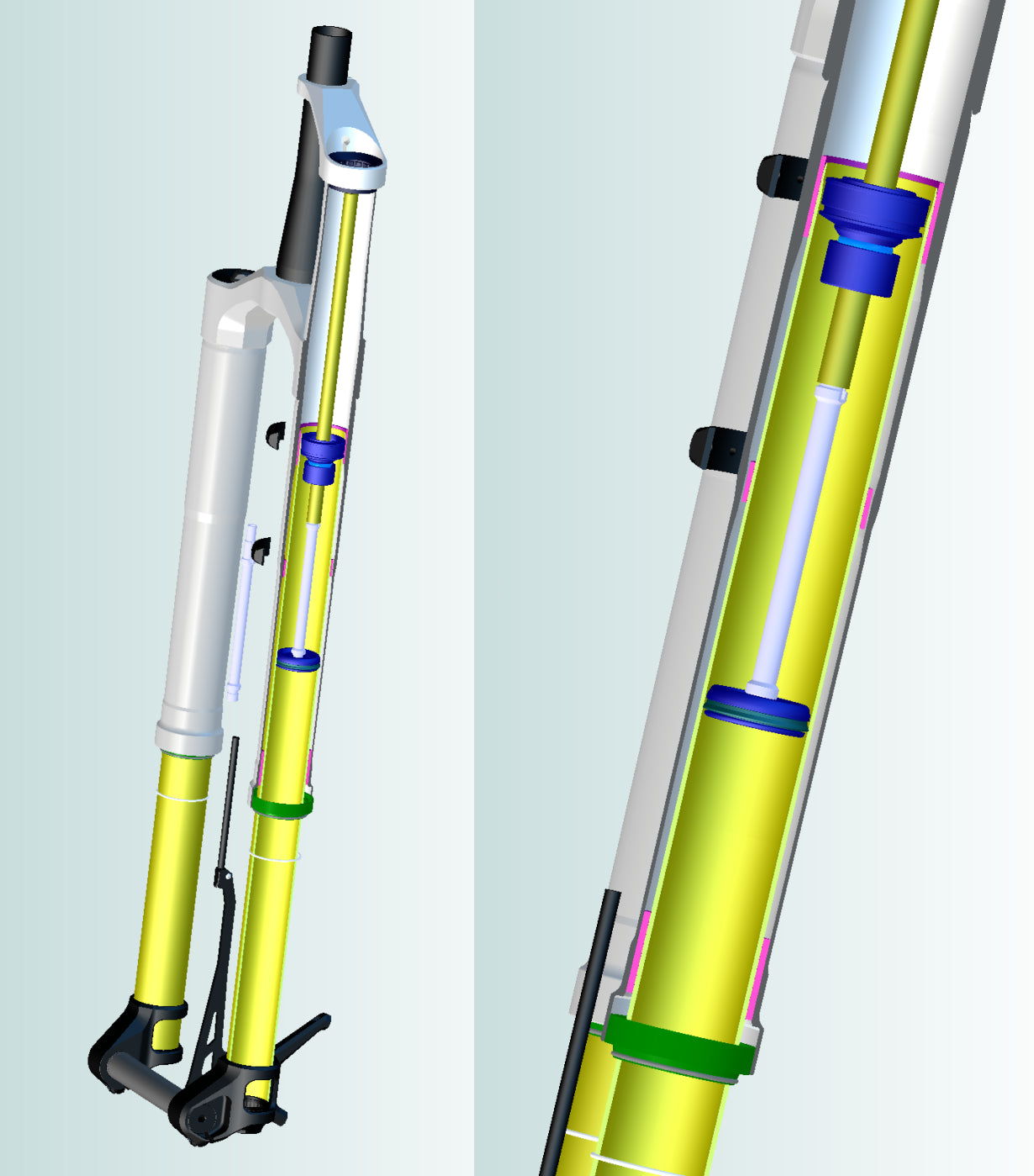

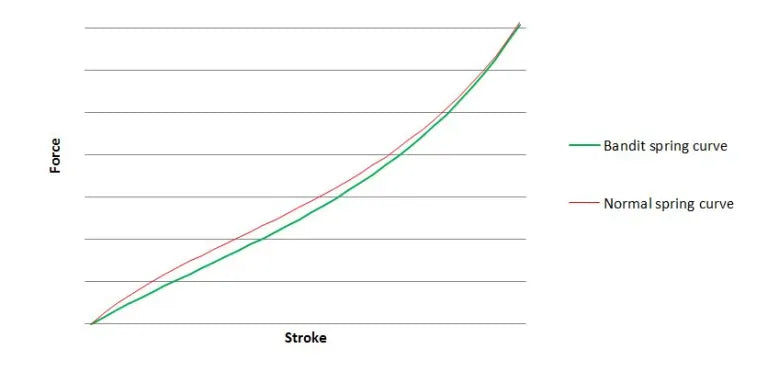

Our DH-ready damping and airspring provides an unmatched subtleness and a natural, predictable feel. In case you wish for more progression: A volume spacer which can be installed in 2 positions is included.
Our forks are especially easy to service and special tools are not required. Changing travel is also easily possible, no extra airshaft needed! Just open the fork with your regular toolset of choice and adjust travel spacers. For more information about service and travel adjustment check out the Tech section.
Blurring the lines between enduro and downhill.
To check if this fork will fit on your bike, please measure the stack of your headtube length + headset. If your measurement is below 133mm choose the 133mm option. If it’s between 133mm and 138mm, please select 138mm. If you’re measurement is above 138mm this fork will not fit your bike properly.
Maximum headtube length + headset stack (low topcap): 133mm
Maximum headtube length + headset stack (high topcap): 138mm
-> specifiy high or low topcapoption at checkout
Specifications
| Ride Style | Enduro / Freeride |
| Travel Range | Maximum stroke 190mm / Adjustable in 10mm steps / Theoretical minimum stroke 0mm |
| Wheel Size | 29" |
| Spring Type | Air spring |
| Damping | Open bath cartridge |
| Adjustments | Rebound / Compression / Air spring / Progression |
| Weight | 2390g |
| Brake Mounting | 180mm or 203mm with adapter (Boost or Non-Boost) |
| Dropout | 15mm x 110mm aluminum axle |
| Axle System | Bolt-On thru axle |
| Axle Material | Light alloy or Steel |
| Fork Offset / Rake | 44mm |
| Axle To Crown | 190mm (601.5) / 180mm (591.5) / 170mm (581.5) with 29"... You get the idea! |
| Maximum Headset Length | 133mm with low topcap option / 138mm with high topcap option (Measurement incl. headset) |
| Steerer Tube | Tapered 1 1/8” - 1.5” |
| Steerer Tube Length | 243mm |
| Steerer Tube Material | High strength alloy |
| Stem Clamp Diameter | 28.60mm |
| Crown Race Seat Diameter | 39.79mm |
| Crown Material | High strength alloy |
| Stanchions Material | High strength alloy |
| Stanchions Diameter | 35mm |
| Lowers Material | High strength alloy |
| Colour | Black anodized |
| Other | Royal flush coating / SKF D35 green dust wipers (Without collar) / Main and current sag indicators |
