- No compromise downhill fork
- Outstanding small bump sensitivity and responsiveness
- UCI world cup circuit approved
- Designed, engineered & tested in Freiburg / Germany
- Assembled 100% in-house and by hand – One at a time
intend BC
Infinity
Travel:215mm
Offset:44mm
Brake Mount:Boost 203mm
Quantity:

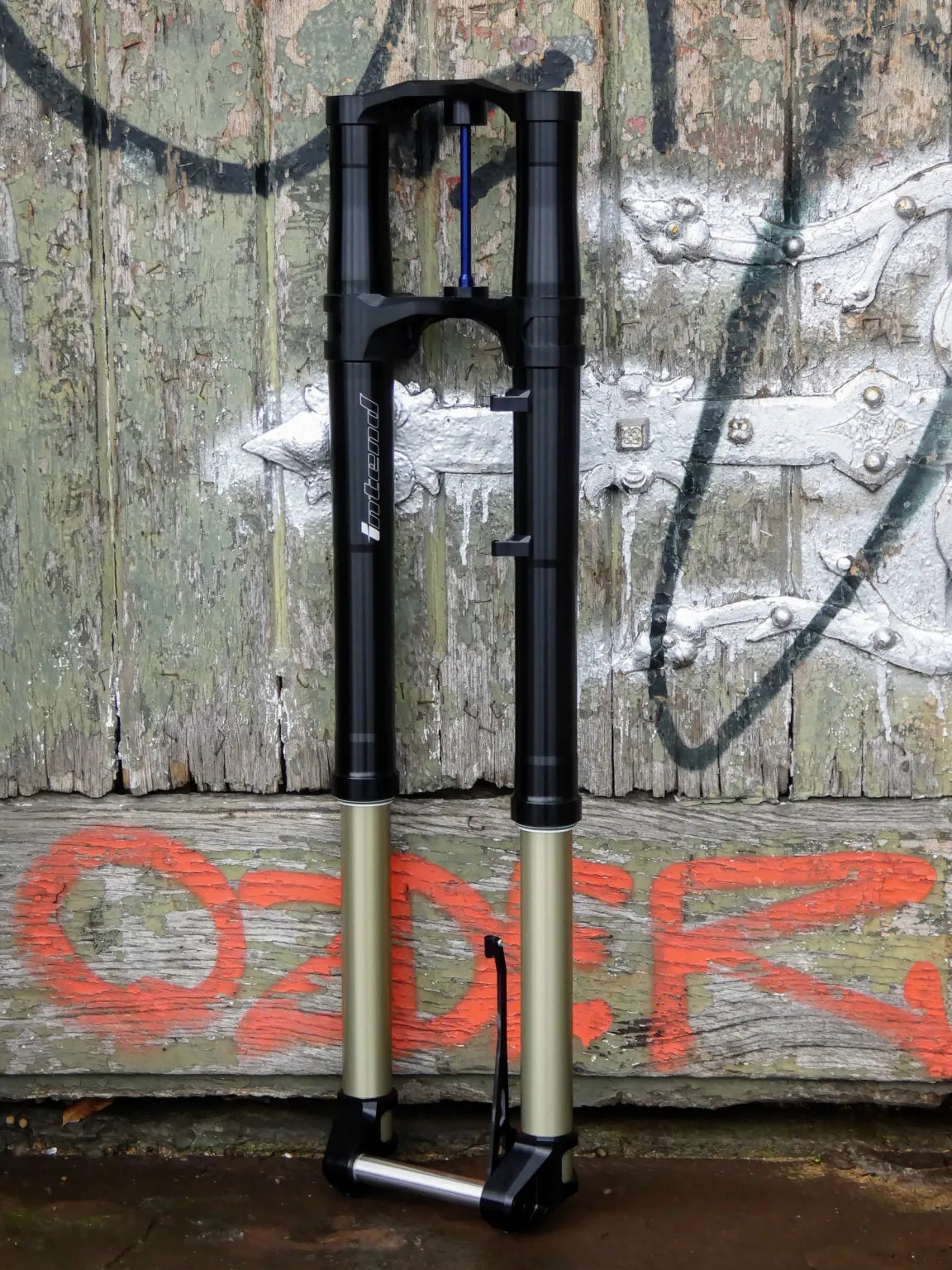

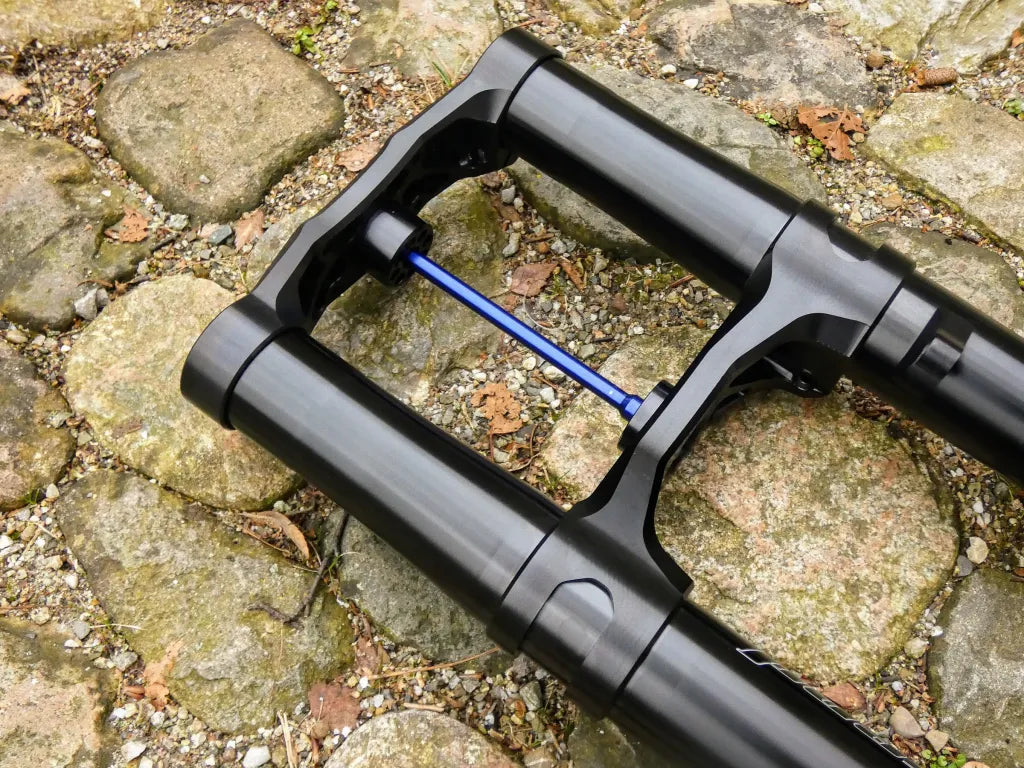

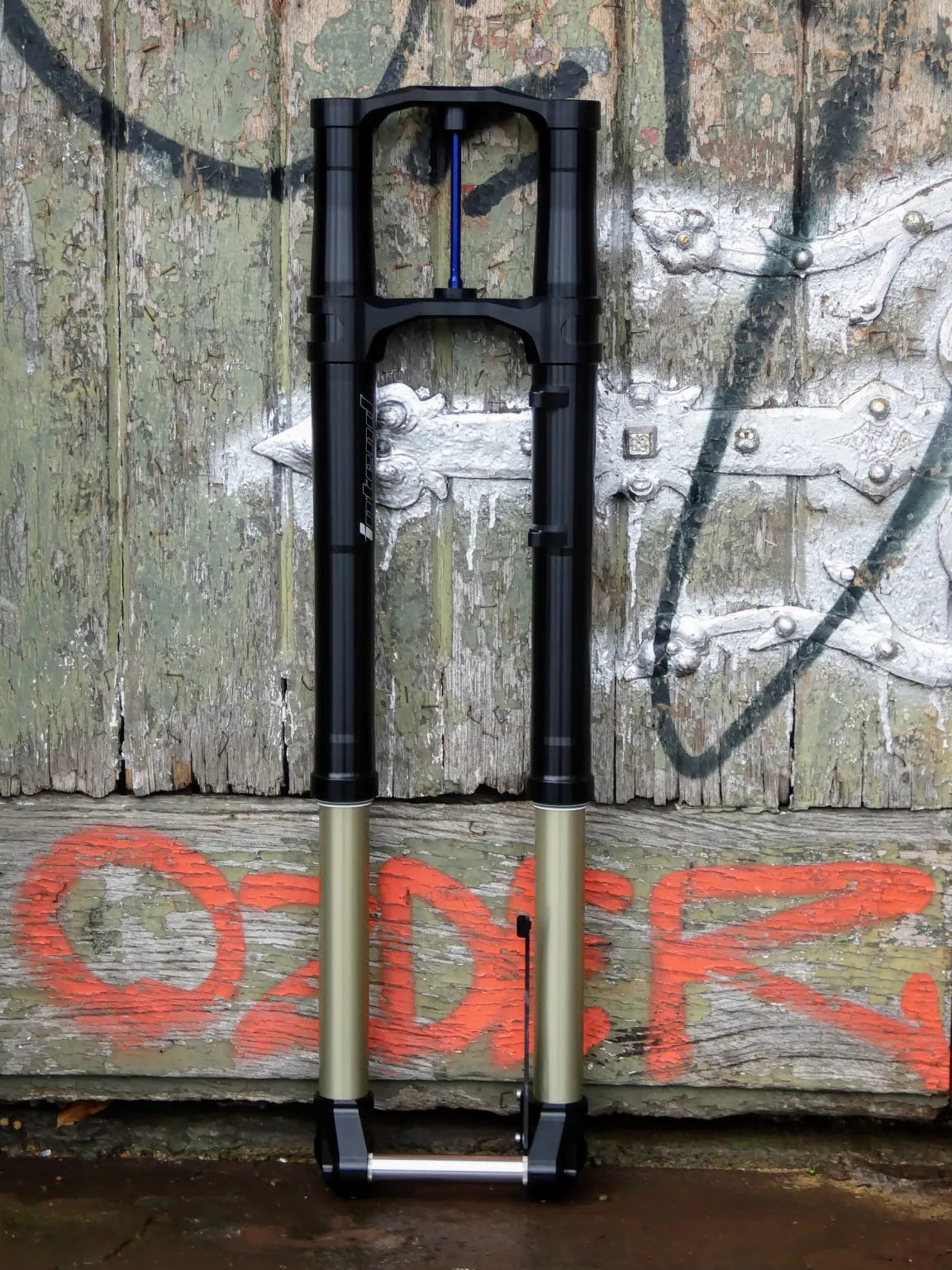

INFINITY
Downhill / Freeride Fork
Made for bike parks and downhill tracks, the Infinity takes all tracks with ease and has proven itself worthy on Downhill Cup circuits. Rock gardens, roots and big features are its natural habitat - the perfect tool to find your own personal limit.
The design of upside down forks allows for a longer casting / upper tubes and thus distance between bushings can be increased to support the extended length of the downtubes more efficiently than on any right side up fork, resulting in a very smooth and friction free suspension feel.
Our DH-ready damping and airspring provides an unmatched subtleness and a natural, predictable feel.
In case you wish for more progression: A volume spacer which can be installed in 2 positions is included.
Our forks are especially easy to service and specific tools are not required. Changing travel is also easily possible, no extra airshaft needed! Just open the fork with your regular toolset of choice and adjust travel spacers. For more information about service and travel adjustment check out the Tech section.
Specifications
| Ride Style | Downhill / Freeride |
| Travel Range | Maximum stroke 215mm / Adjustable in 10mm steps / Theoretical minimum stroke 0mm |
| Wheel Size | 27.5" / 29" (Unisize) |
| Spring Type | Air spring |
| Damping | Open bath cartridge |
| Adjustments | Rebound / Compression / Air spring / Progression |
| Weight | 2550g |
| Brake Mounting | 180mm / 203mm brake mount (Boost or Non-Boost) |
| Dropout | 15mm / 20mm x 110mm (15mm reduction with 20to15 adapters) |
| Axle System | Bolt-On thru axle |
| Axle Material | Titanium / Steel |
| Fork Offset / Rake | 44mm / 51mm |
| Axle To Crown | 215mm (590) / 205mm (580) / 195mm (570) / 185mm (560) with 27.5" / 205mm (595) / 195mm (585) / 185mm (575) with 29"... You get the idea! |
| Maximum Headset Length | 130mm (Measurement incl. headset with 29") |
| Steerer Tube | 1 1/8" |
| Stem Mount | Direct mount |
| Crown Race Seat Diameter | 30.00mm |
| Crown Material | High strength alloy |
| Stanchions Material | High strength alloy |
| Stanchions Diameter | 35mm |
| Lowers Material | High strength alloy |
| Colour | Black anodized / Silver anodized (Silver anodized comes with black crowns) |
| Other | Royal flush coating / SKF D35 green dust wipers (Without collar) / Main and current sag indicators |
