Öhlins TTX2 Air

Öhlins TTX2 Air

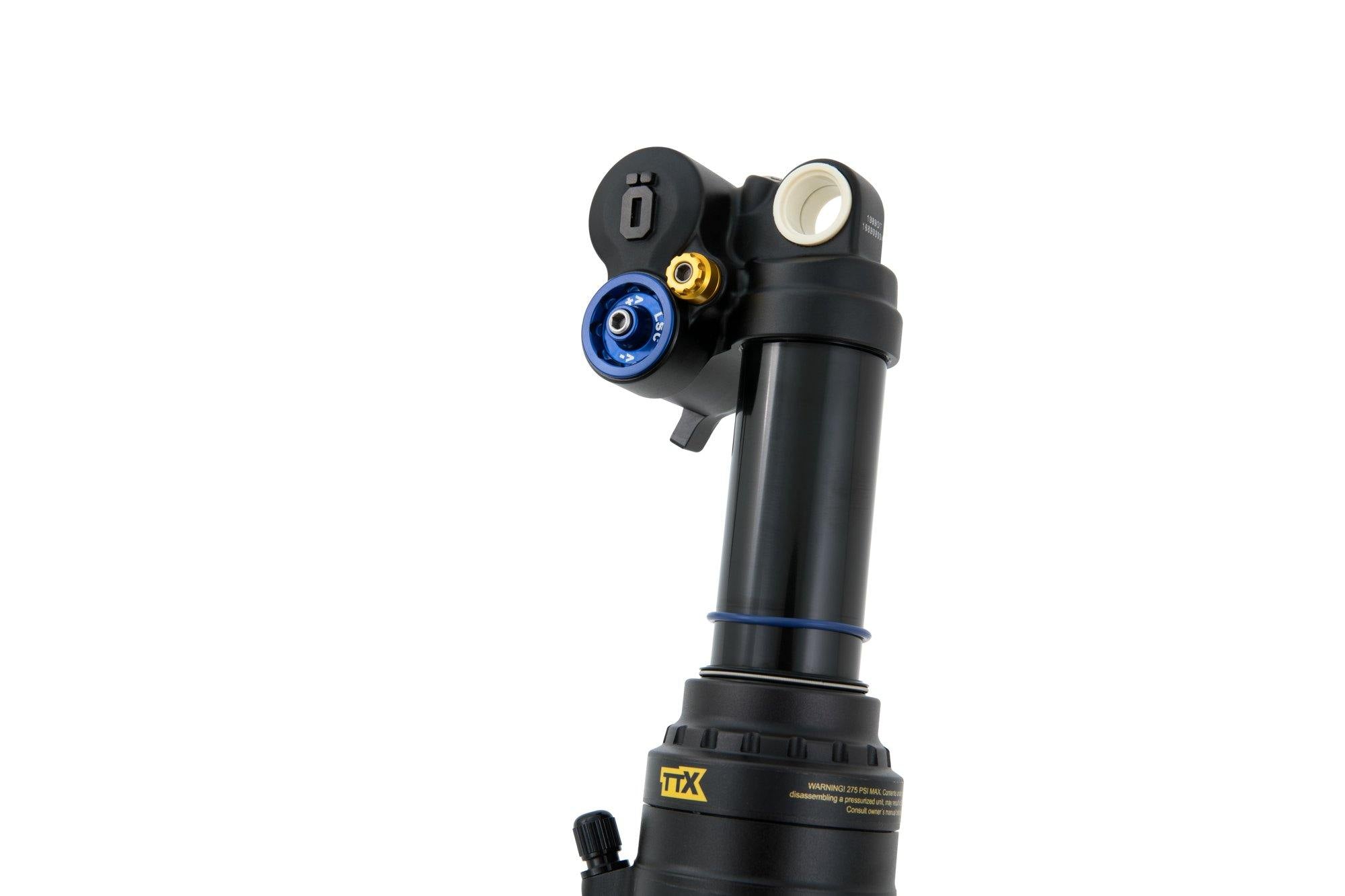

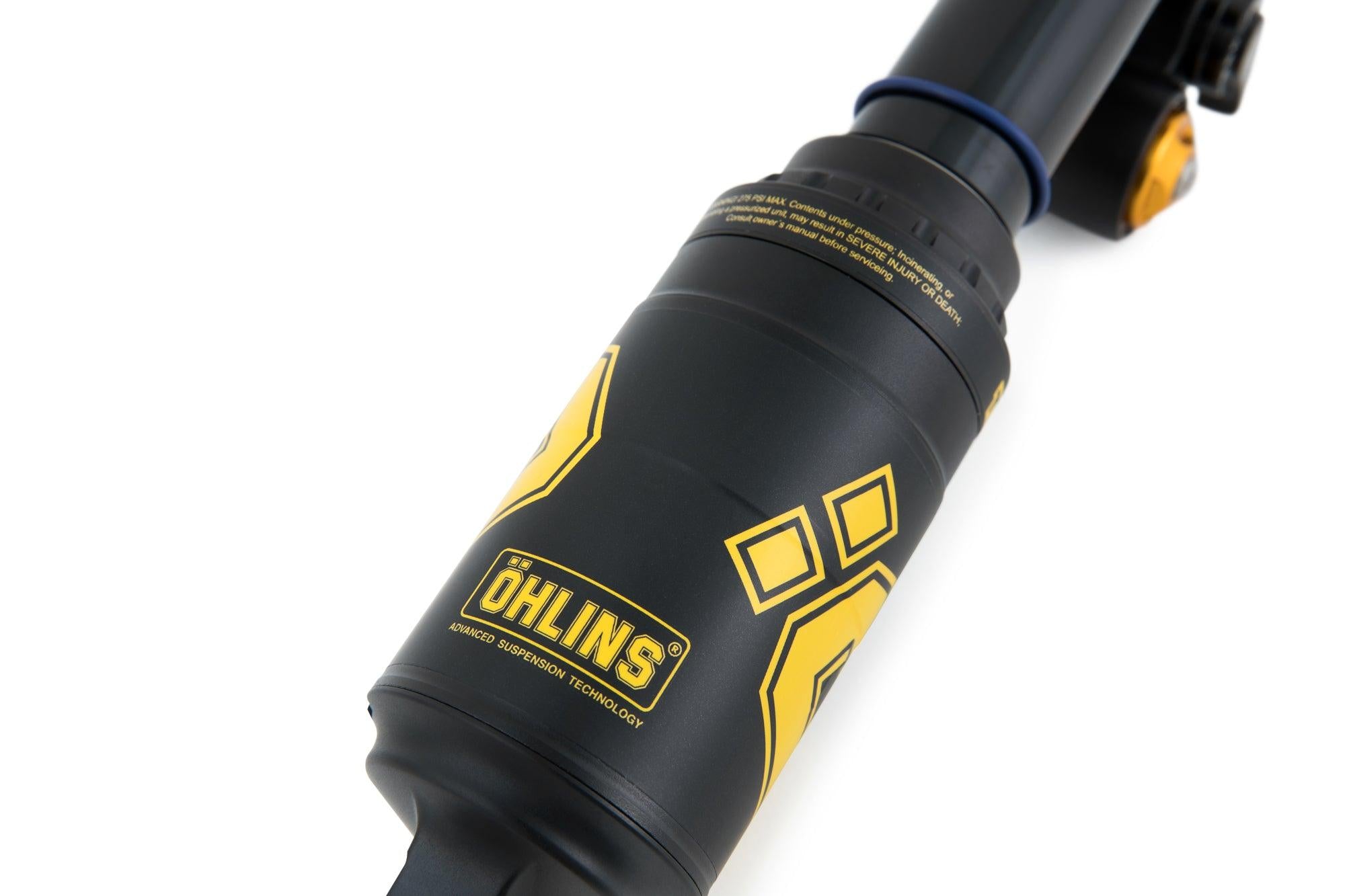

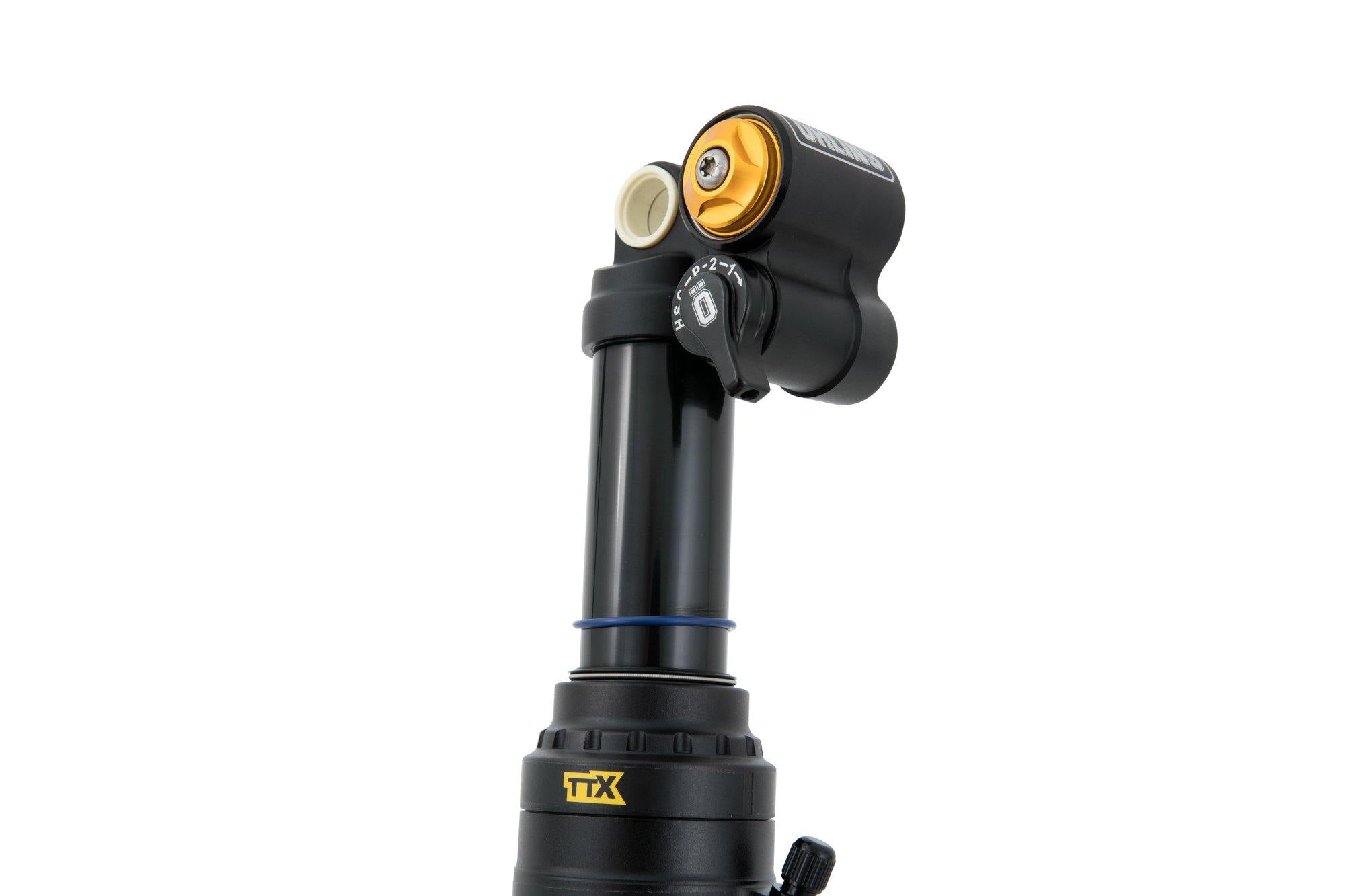

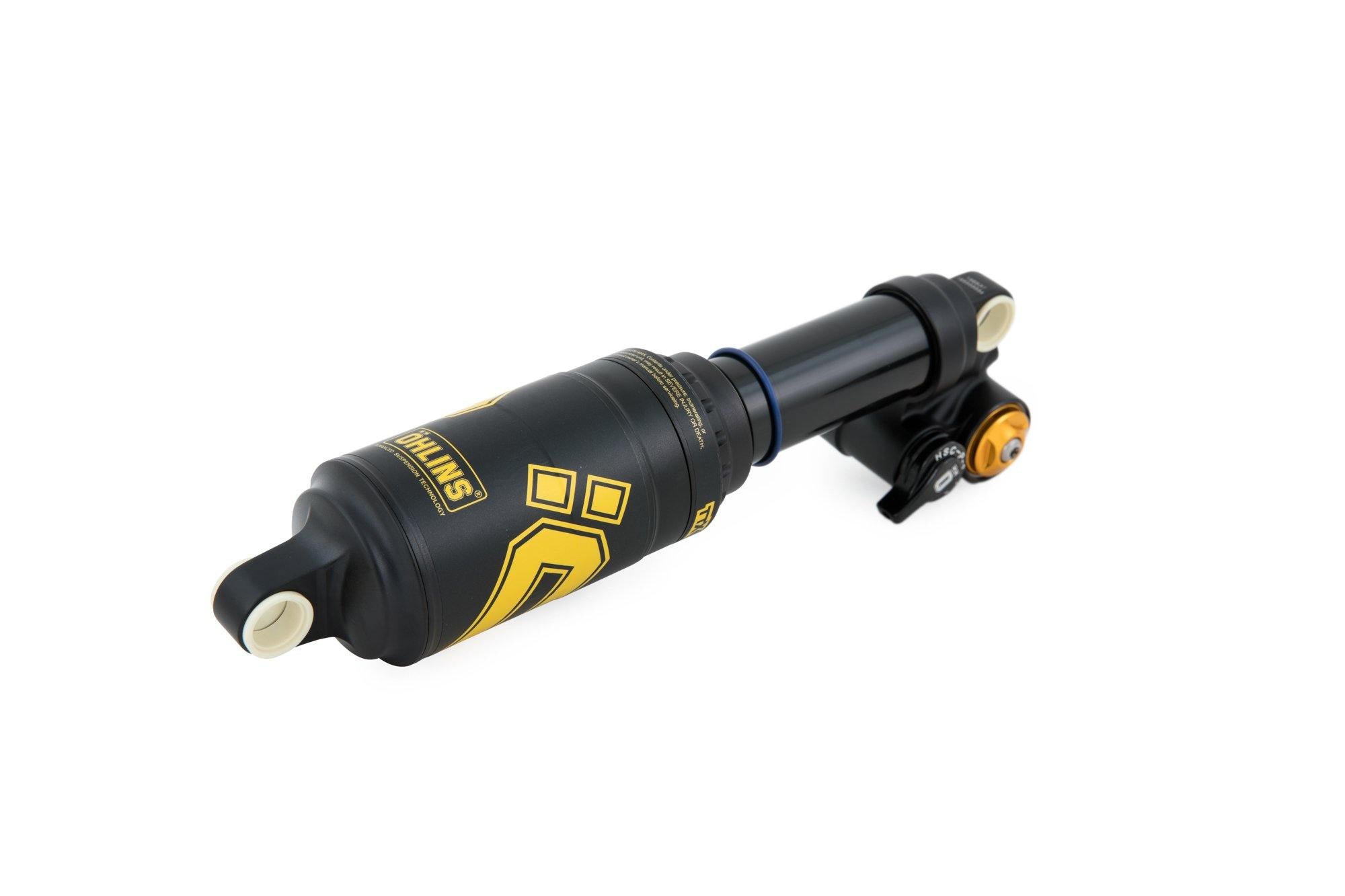

Born out of the highly successful and well proven TTX 22 M coil shock comes the TTX2 Air shock absorber. The TTX2 Air combines the best of both worlds - the TTX 22 M's damping performance and robustness with the light weight and the simple tuning of an air shock.

FEATURES

• Twin-tube technology (TTX)
• Pressurized system with gas reservoir
• Aluminum, hard anodized
• Serviceable, rebuildable
• 2 years warranty

TECHNICAL SPECIFICATIONS

• Weight: ca. 410 g
• End-eye diameter: 15 x 12,7 mm

TRAVEL ADJUSTMENT

• 190x45 can be changed to: 42.5, 40 or 37.5mm
• 210x55 can be changed to: 52.5, 50 or 47.5mm
• 230x65 can be changed to: 62.5, 60 or 57.5mm
• Travel adjustment can be purchased as an upgrade with the shock, please leave a note at Checkout

ADJUSTMENT

• 3 click high speed compression damping incl. pedal mode
• 10 click low speed compression damping
• 12 click low speed rebound damping
• Spring rate (via air pressure)
• Spring progression

PURCHASED PARTS PACKAGE

• 1 shock absorber TTX Air
• Owners manual
• Mounting instruction

MOUNTING KITS

For the installation of universal shock absorbers to specific bicycle models mounting kits are available. They consist of bushings, spacers and x-rings and need to be ordered separately (see product group mounting kits).
