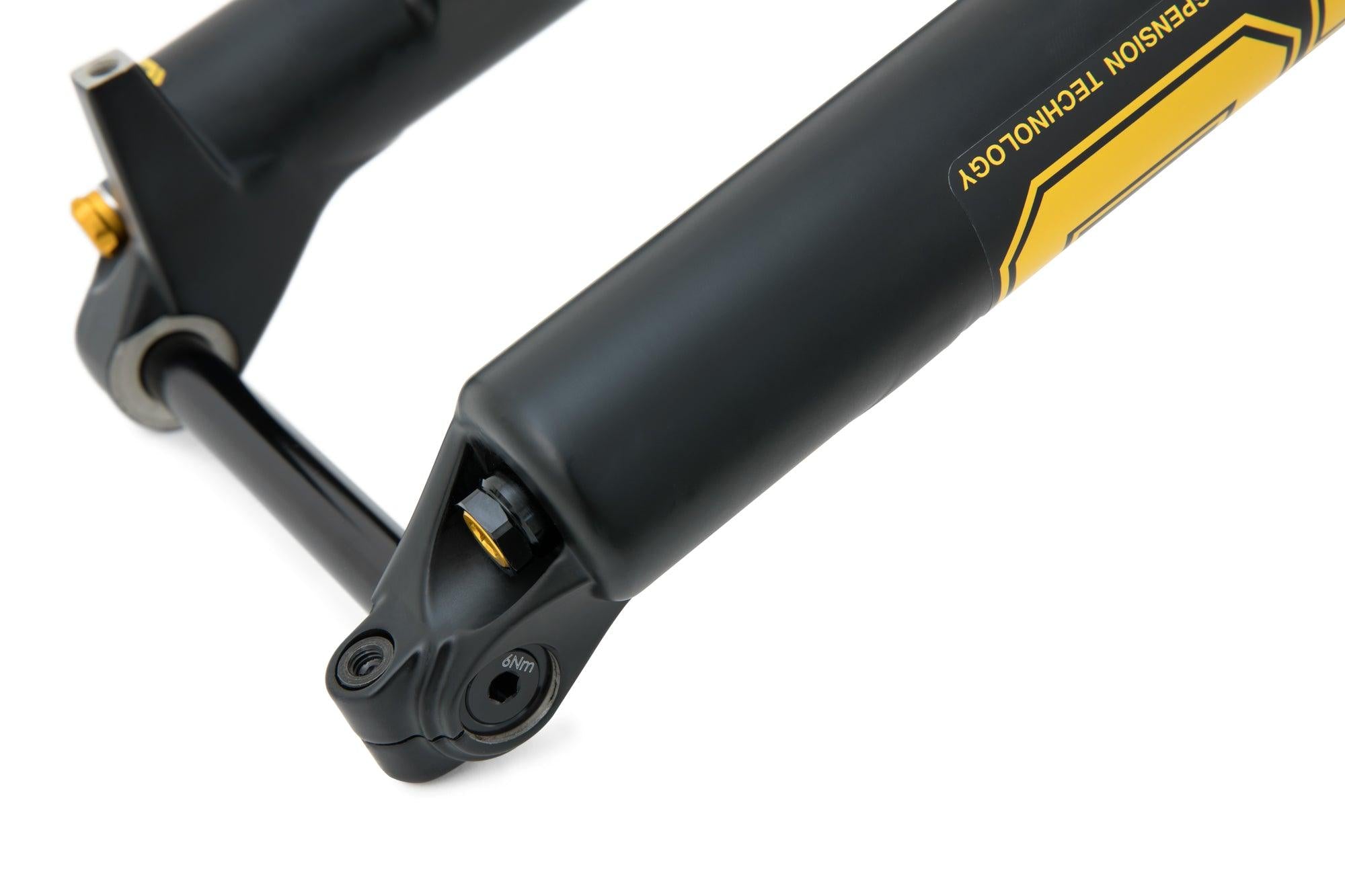

Öhlins RXF36 m.2 Coil

The race proven TTX18 dampening from the DH38 Race Fork has been reworked for the all new RXF36 M.2 fork to give optimal traction and control on trails and Enduro race courses. The Öhlins RXF36 M.2 is available as an Air or Coil fork. The TTX18 cartridge kit featuring trail-optimized 18 mm piston for improved small bump sensitivity. With increased damping pressure bandwidth the damping valve response and sensitivity has improved.

The damping adjustment range is set specifically for trail to Enduro race use with 15 clicks of low speed compression and low speed rebound. For the high speed compression damping you get 3 clicks plus a climb mode setting. The retuned twin piston three chamber air spring system allows total air spring tuning from the initial movement through to the bottom out.



TECHNICAL SPECIFICATIONS

  • Coil spring 9,7 N/mm (additional spring rates available)
  • Weight approx. 2380 g (with full steerer and heaviest rate spring)
  • Stroke 120 - 170 mm (170 mm standard stroke, please see note below)
  • Stanchion tubes 36 mm
  • Axle 15 x 110 mm
  • Maximum tire sizes
    29 x 2,8 / 27,5 x 2,8 / 27,5+ x 3,2
  • Aluminium design, hard anodized
  • Fully servicable and rebuildable
  • 2 years limited warranty



OFFSET

  • 27.5": 38 or 46 mm
  • 29": 44 or 51 mm

Please note, that the RXF36 M.2 Coil forks are supplied with 170 mm travel as a standard. Please inform us about the stroke you want so we can change if needed.



ADJUSTMENT

  • Spring preload
  • 15-click rebound damping
  • 15-click low speed compression damping
  • 3-click high speed compression damping
  • Climb mode
  • Optional springs available (see below)



PURCHASED PARTS PACKAGE

  • 1 MTB front fork RXF 36 M.2 Coil
  • 1 axle 15 x 110 mm
  • 1 star-nut
  • Owners manual



OPTIONAL SPRINGS & SPRING EXCHANGE

The RXF 36 Coil forks are equipped with 9,7 N/mm (55 lbs/in) spring as a standard. Optional springs are available between 6,1 and 11,5 N/mm (35-65 lbs/in). Spring series 18651-xx.

If you order an alternative front fork spring we offer to install it free of charge before shipping and supply the standard spring unmounted. Please inform us via note in the order form if you would like us to install the alternative spring.

  • Rider weight 45 kg (100 lbs):
    6,1 N/mm (35 lbs/in), red marking, 201 g,
  • Rider weight 55 kg (120 lbs):
    7,0 N/mm (40 lbs/in), yellow marking, 203 g,
  • Rider weight 64 kg (140 lbs):
    7,9 N/mm (45 lbs), green marking, 242 g,
  • Rider weight 73 kg (160 lbs):
    8,8 N/mm (50 lbs), blue marking, 253 g,
  • Rider weight 82 kg (180 lbs):
    9,7 N/mm (55 lbs), white marking, 265 g,  (standard spring)
  • Rider weight 91 kg (200 lbs):
    10,6 N/mm (60 lbs), black marking, 279 g,
  • Rider weight 100 kg (220 lbs):
    11,5 N/mm (65 lbs), red/black/red marking, 297 g,
