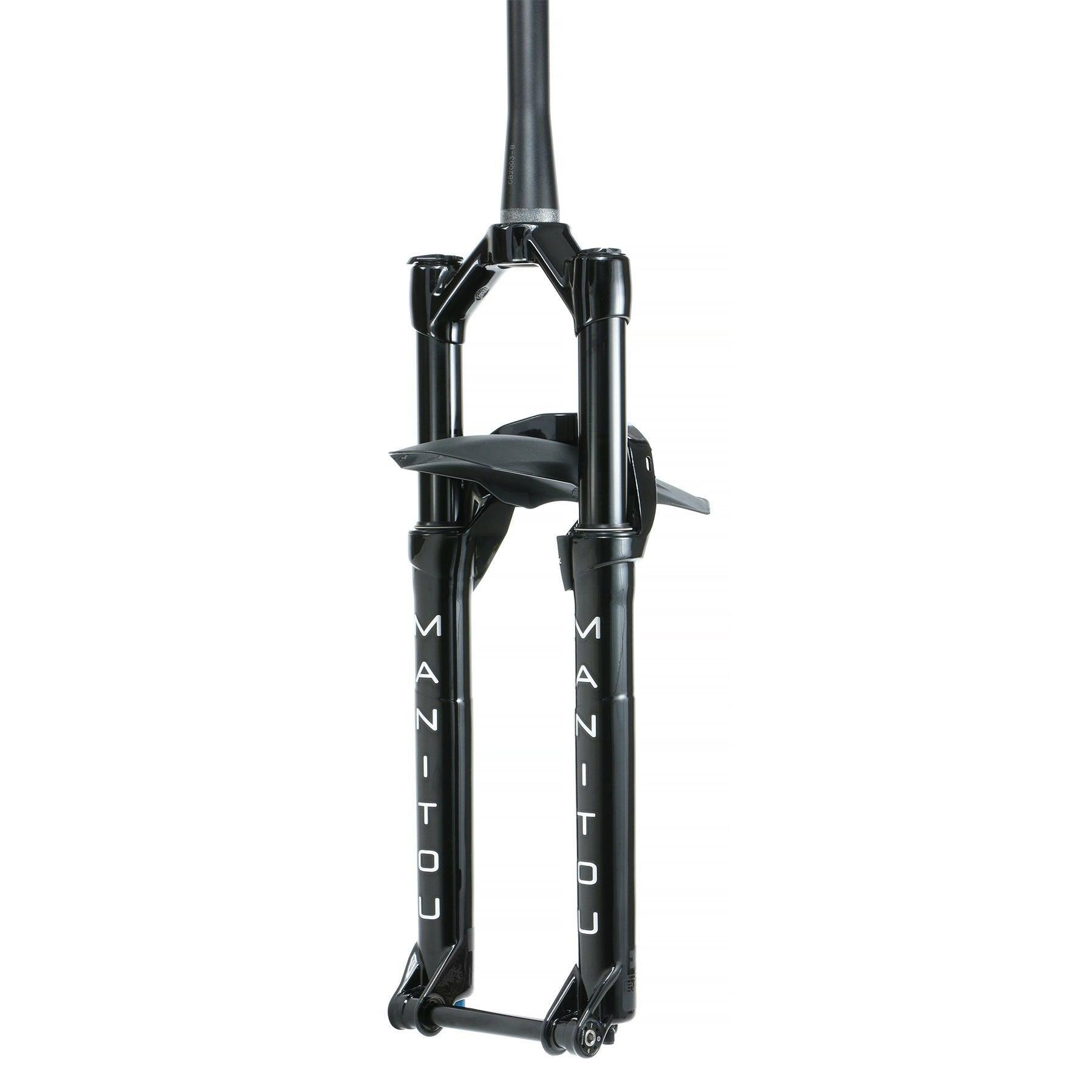

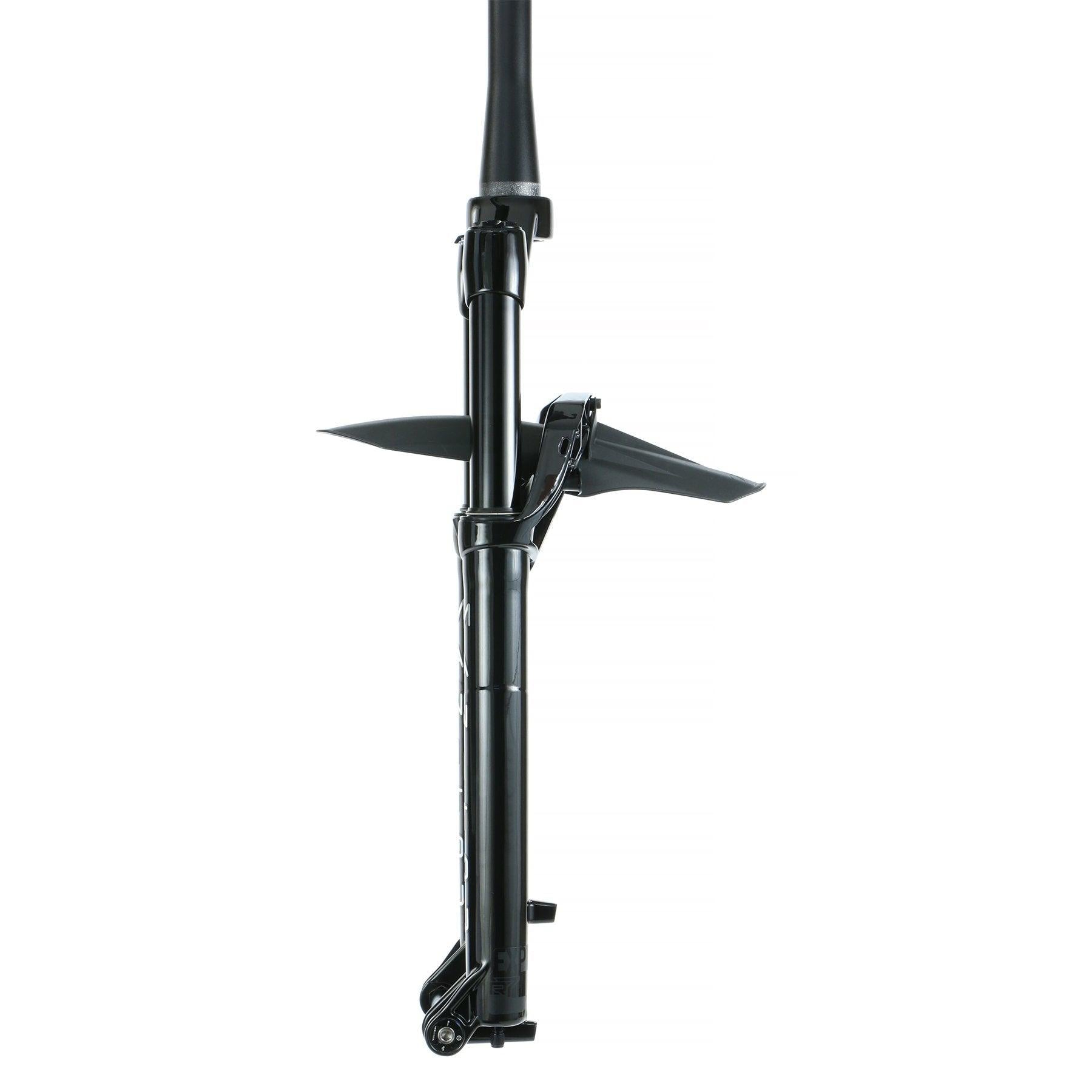

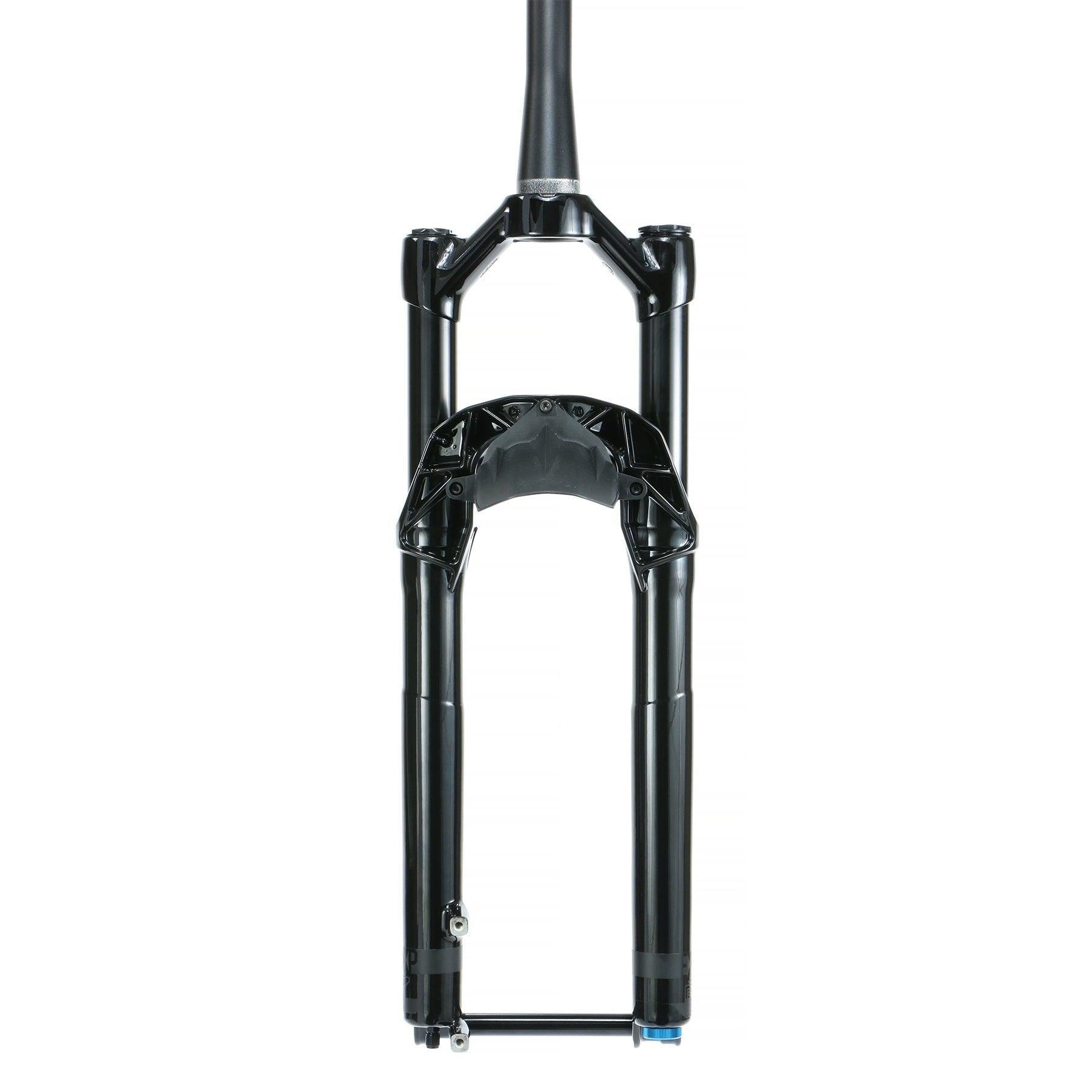

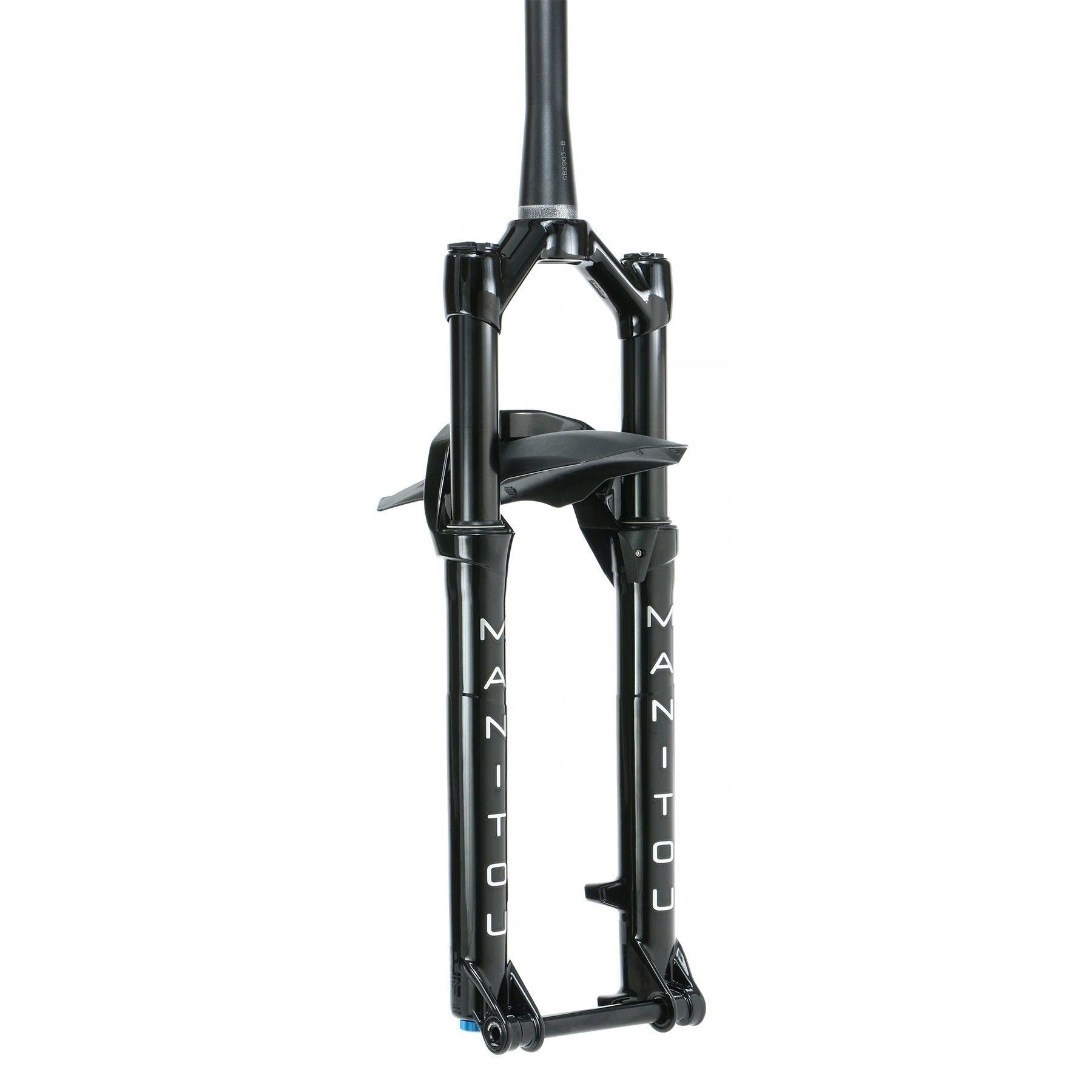

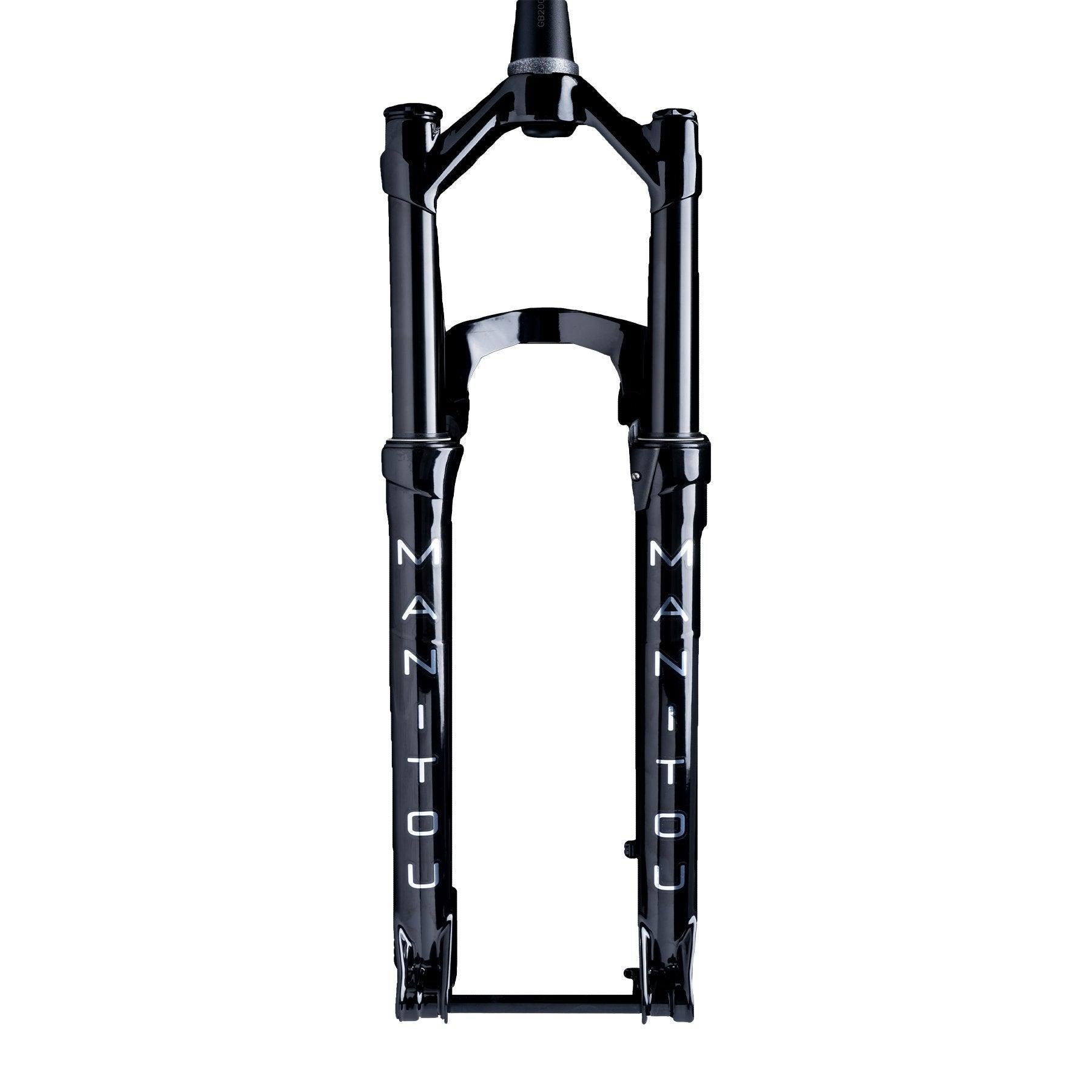

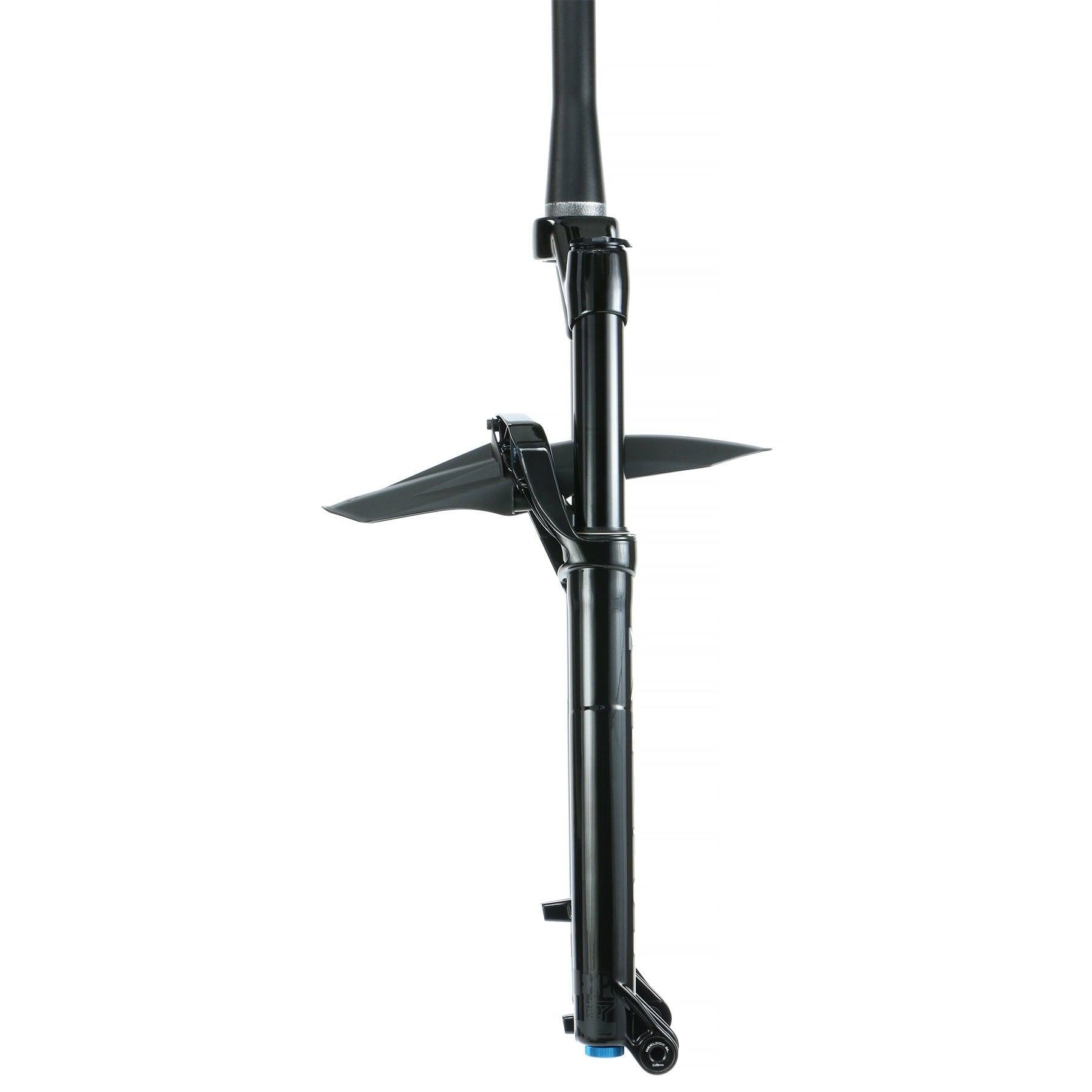

Rebirth of an Icon
The R7 has a vast history of combining a lightweight chassis with performance and reliability. And this latest incarnation of the icon is no different. The new R7 expert pairs superior damping thanks to our 3 position dual piston VTT damper with a lightweight and stiff 32mm chassis.
Manitou
R7 Expert
Wheel Size:27.5"
Travel:100
Offset:37mm
Quantity:
R7 Expert
27.5" / 100 / 37mm
GAMUX
,
Tschachenhofweg 3
8855 Wangen
Switzerland
Description
Specifications
- Wheel Size: 27.5", 27.5+/29"
- Weight: 1789g (27.5") 1812g (27.5+/29")
- Offset: 37/44OS (27.5") 44/51OS (27.5+/29")
- Ride Height: 471-511mm (27.5") 485-525mm( 27.5+/29")
- Travel: 80-120mm Internally adjustable in 10mm increments

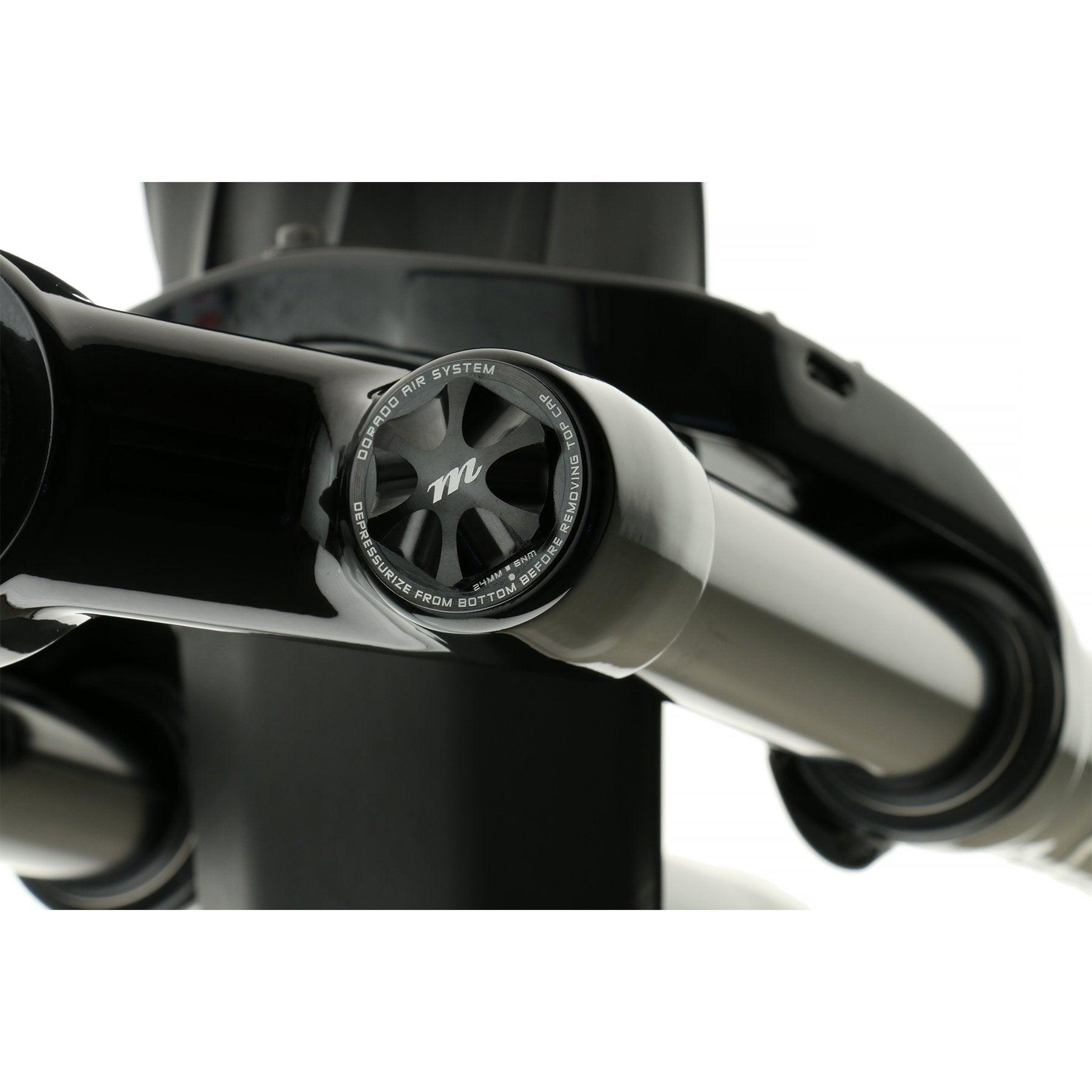

- Spring: Expert Air

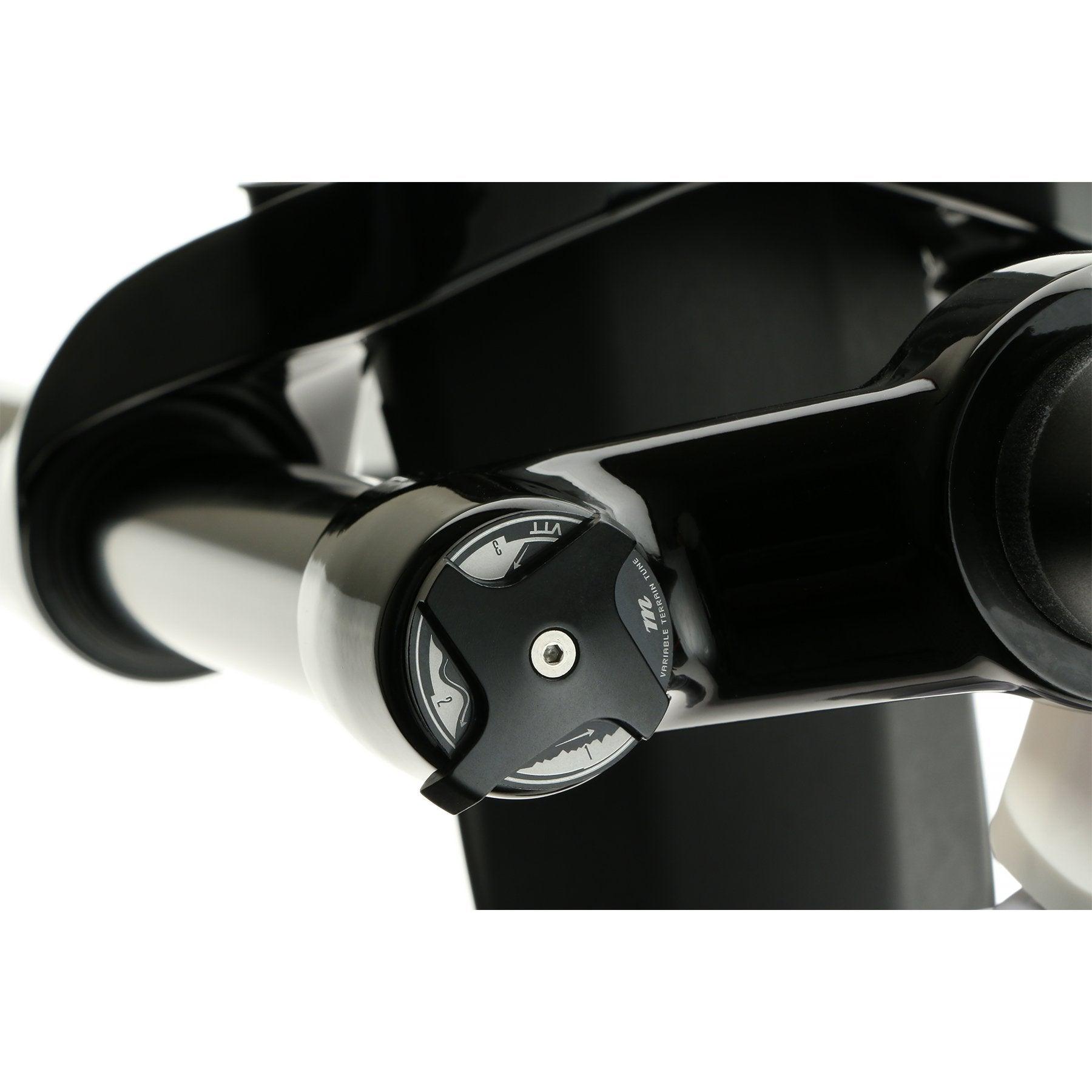

- Compression Damping: VTT
- Rebound Damping: in-leg adjustable TPC
- Adjustments: Air, Rebound, 3-position Compression (Open, Trail, Lock)
- Steerer: 1.5" Tapered
- Crown: Forged Aluminum, Hollow Bore Gloss Black
- Leg Diameter: 32mm
- Leg Material: 6000- Series Straight Wall Aluminum
- Brake Post Mount: 160mm (203mm Max)

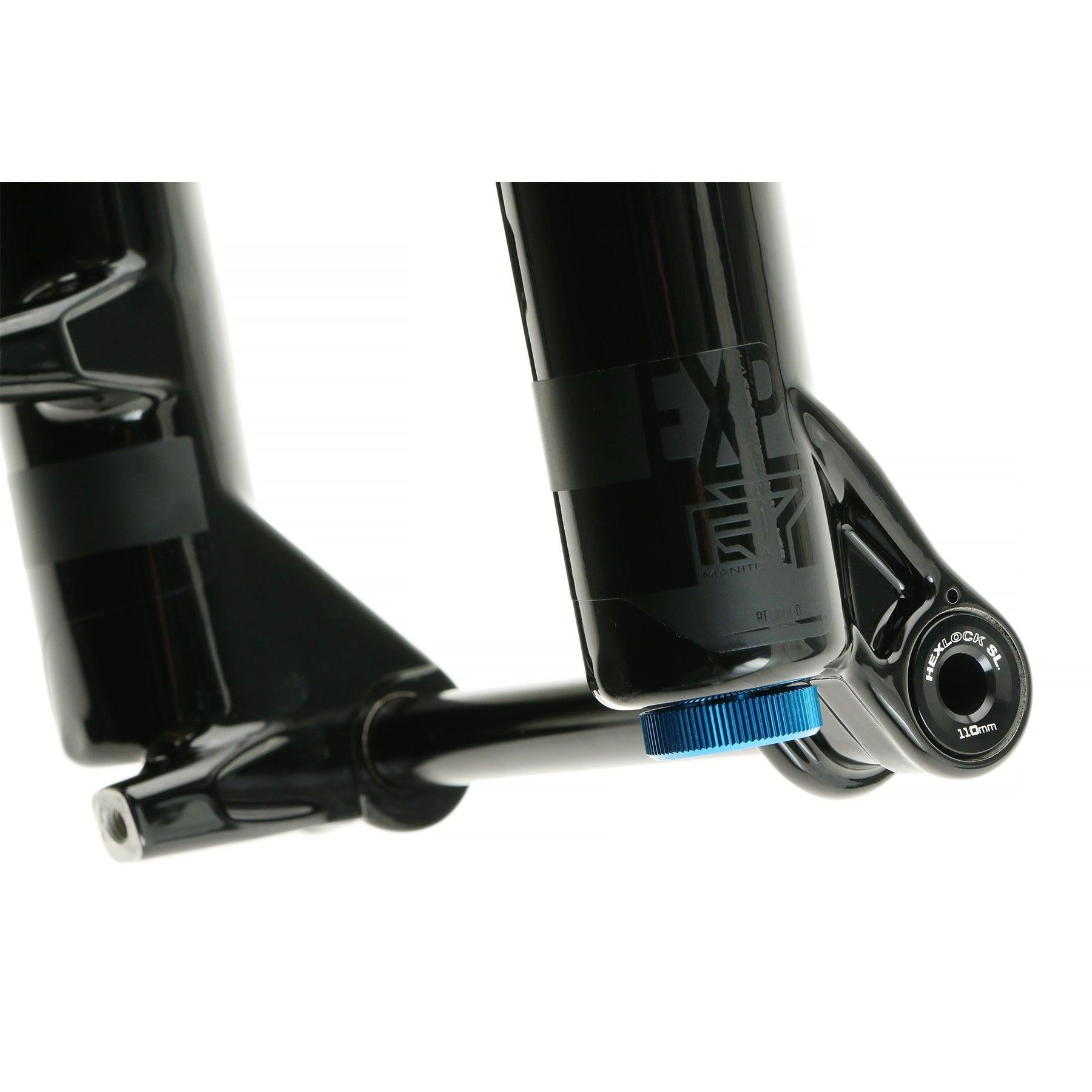

- Axle: 15mm x 110mm Hexlock
- Max Tire Size: 68mm 77mm (27.5+), 68mm (29)
- Options: QR15, Fender Kit, IVA, Remote Lockout
- E-Pac: No
