Reynolds
ATR Gravel
Quantity:
ATR Gravel
GAMUX
,
Tschachenhofweg 3
8855 Wangen
Switzerland

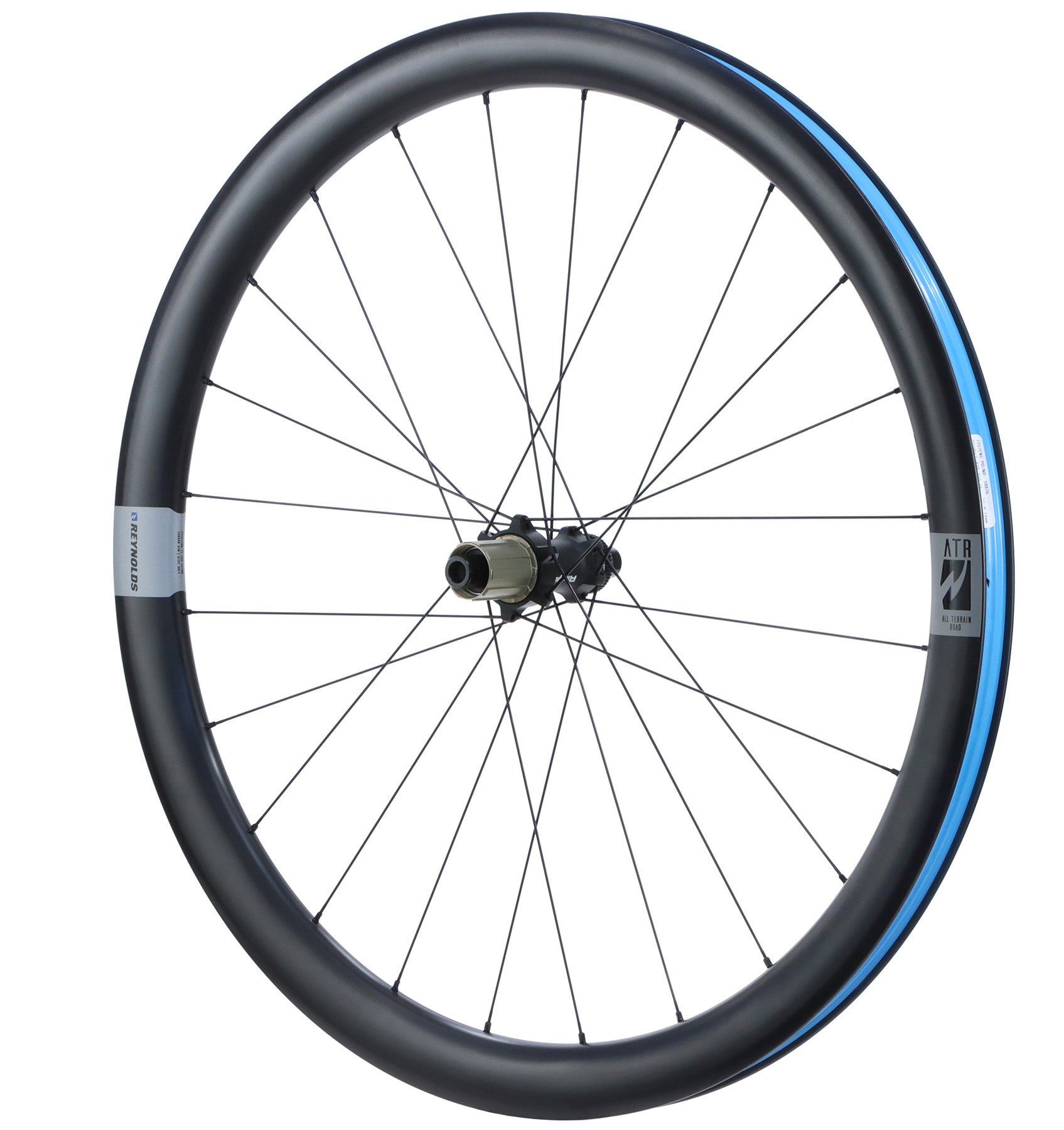

The next evolution of our benchmark aero gravel wheels
improve aerodynamics with a new DET2 profile further
enhancing off-pavement performance with a 25mm TSS
channels for a more compliant ride.
Features
• New wider DET2 profile is optimized for 35-45mm gravel tires
• New 25mm TSS channel improves tire fit and low-pressure performance
delivering improved handling and efficiency

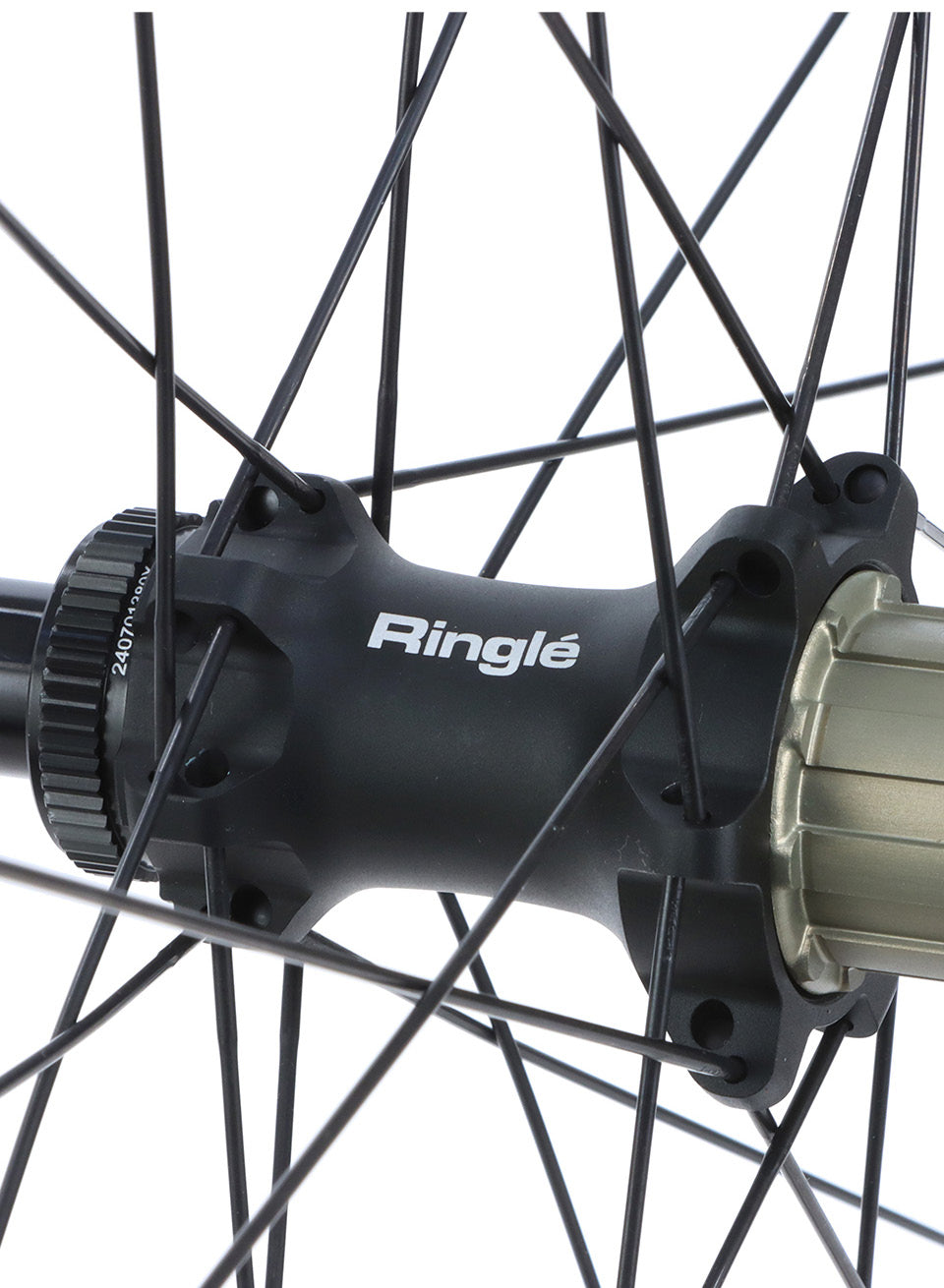

• New lighter Ringlé SRX road hubs carrying on the tradition of
Ringlé durability, quality, and performance
• Fully CNC machined with quick 12° engagement.
Specs:
- USAGE: GRAVEL
- RIM TECHNOLOGY: CR3 TSS
- RIM DEPTH 42mm
- RIM WIDTH 25mm
- HUBS NEW Reynolds/Ringle SRX Road DB, 100% CNC machined, 12° engagement, 3 pawl
- BRAKE INTERFACE CL
- FRONT AXLE 12 x 100 TA (15 x 100 TA available)
- REAR AXLE 12 x 142 TA
- FH BODY Shimano HGR, MS, SRAM XDR, Campy N3W
- SPOKES Sapim Sprint
- NIPPLES EXT Brass
- HOLE COUNT 24/24
- SIZE 622
- WEIGHT 1506g (set)
- INCLUDED Tubeless tape (installed), Brass tubeless valve stem
