Description
The Blacklabel 80 Pro features a 21mm wide and 80mm deep rim, with Carbon Rim 6 technology that utilizes an intricate carbon layup schedule to manage the varying stresses in key zones of the rim. The Pro model uses Reynolds/i9 hubs with a proprietary hub shell unique to Reynolds™ that is perfected for improved performance, durability and low weight balanced with optimized aerodynamics and power transfer. Sapim CXRay is the ultimate offering from Sapim spokes. It offers superior strength, aero qualities and ride characteristics all within a lightweight package.
Key Features
-
• Premium deep aero road/tri/tt wheel designed to give
maximum aerodynamic performance, modern tire fit and
proven stability and versatility.Features
• Designed using RAV design philosophy, our new DET 2 profile maintains class leading stability while improving outright speed and aerodynamic versatility
• Reynolds CR6 laminate design and enhanced resin system reduces rim weight while maintaining durbility and power transfer.
• 21mm TL channel for superior tire fit and compatibility with contemporary tire designs, optimized for 28-30mm tires
• Reynolds/I9 proprietary Blacklabel Torch road hubs, fully CNC machine with 6° engagement for crisp power delivery - 20% lighter | 18% faster | 8% more stable
Specifications
Specifications:
USAGE: ROAD

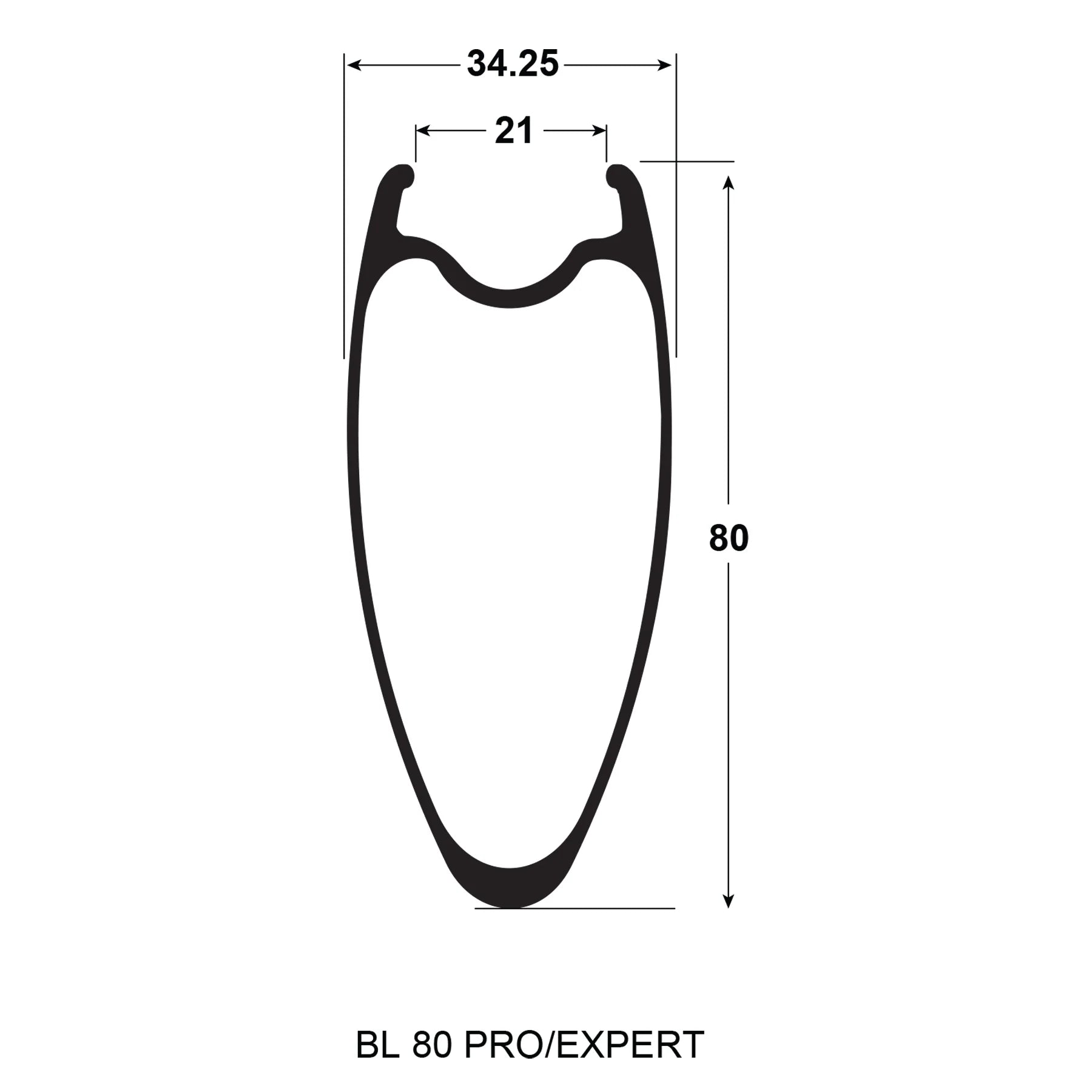

RIM TECHNOLOGY: CR6 TL DET2
RIM DEPTH: 80mm
RIM WIDTH: 21mm
HUBS: Reynolds/I9 Torch Road DB,
100% CNC machined,
6° engagement, 3 pawl
BRAKE INTERFACE: CL
FRONT AXLE: 12 x 100 TA (15 x 100 TA available)
REAR AXLE: 12 x 142 TA
FH BODY: Shimano HGR 11spd, SRAM XDR,
Campy N3W
SPOKES: Sapim CX-Ray
NIPPLES: INT Alloy
HOLE COUNT: 20/24
SIZE: 622
WEIGHT: 1,625g (set)
INCLUDED: Tubeless tape (installed),
Alloy tubeless valve stem
What's in the Box?
•2x Tubeless Valve Stems
•25mm Tubeless Tape installed
•Reynolds Owner's Manual
