Featuring 37mm stanchions, home mechanic approved travel adjustability from 180mm to 140mm, and our easy to use VTT-6P damper, the Mezzer Expert is the smart choice for anyone looking to dive into the Enduro Fork market. Should you later decide you would like more adjustability from your fork, factory upgrades such as IRT and MC2 are available and can be easily installed in your own garage. At 2030g this fork is the second lightest option available within the Enduro fork market, second only to the Mezzer Pro of course.
Manitou

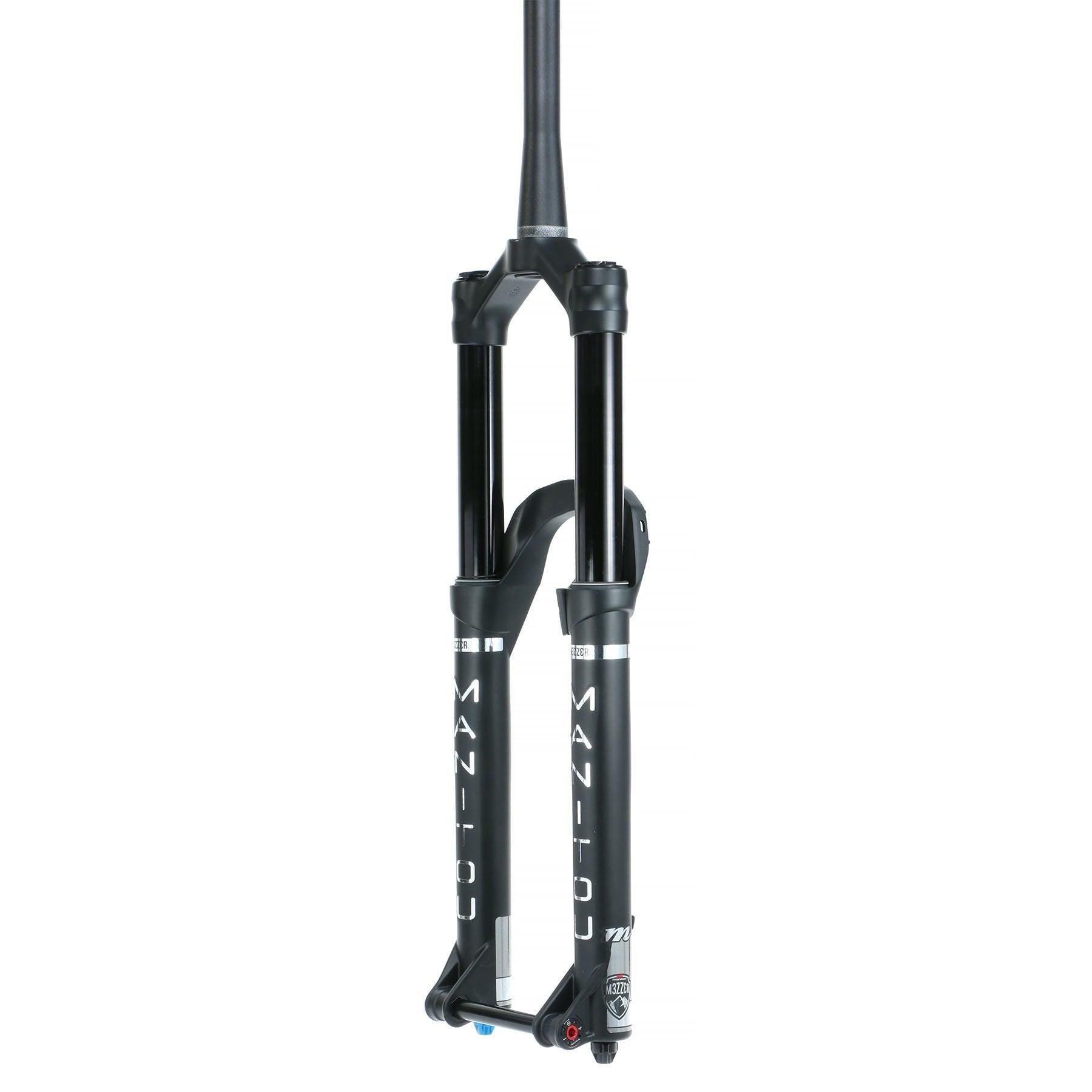

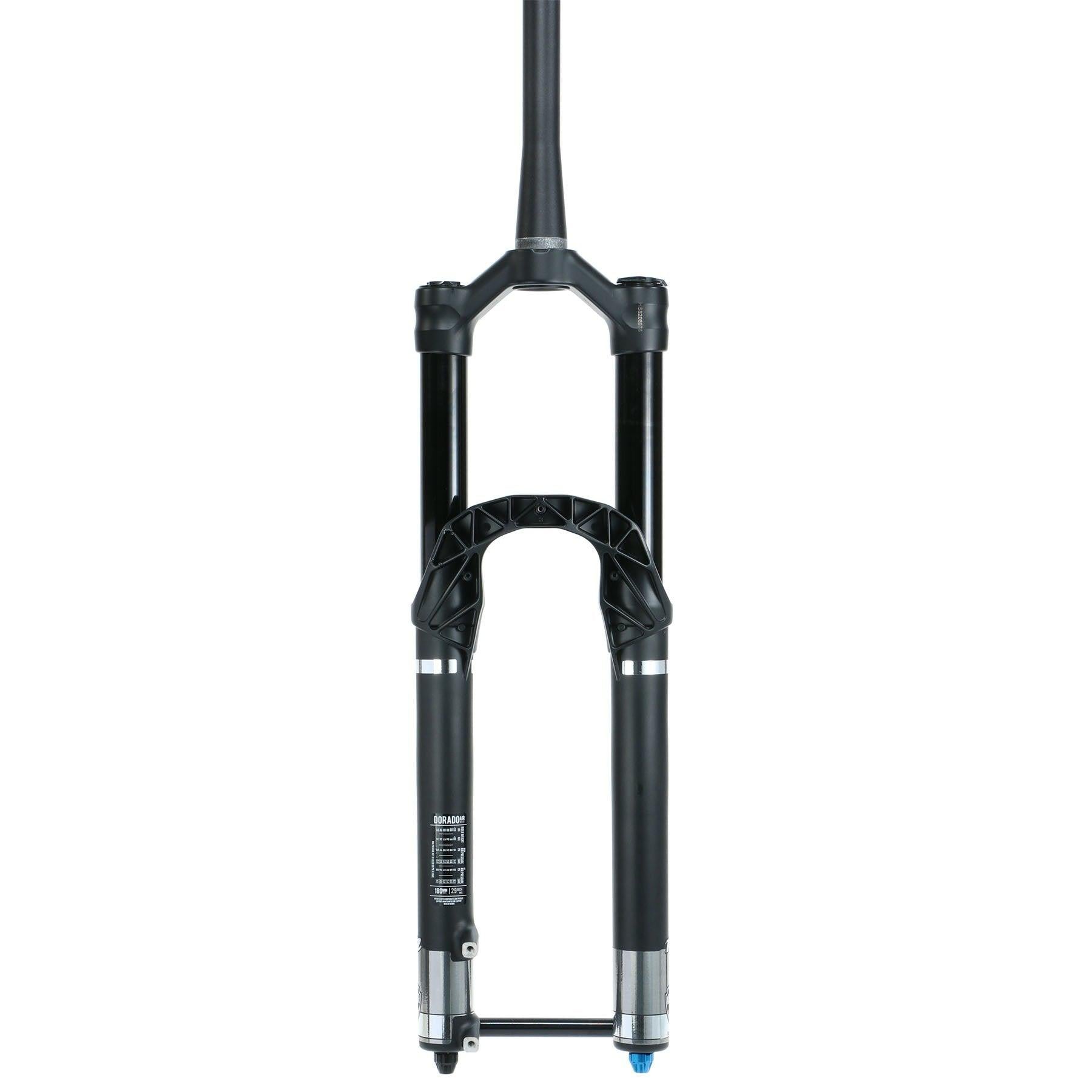

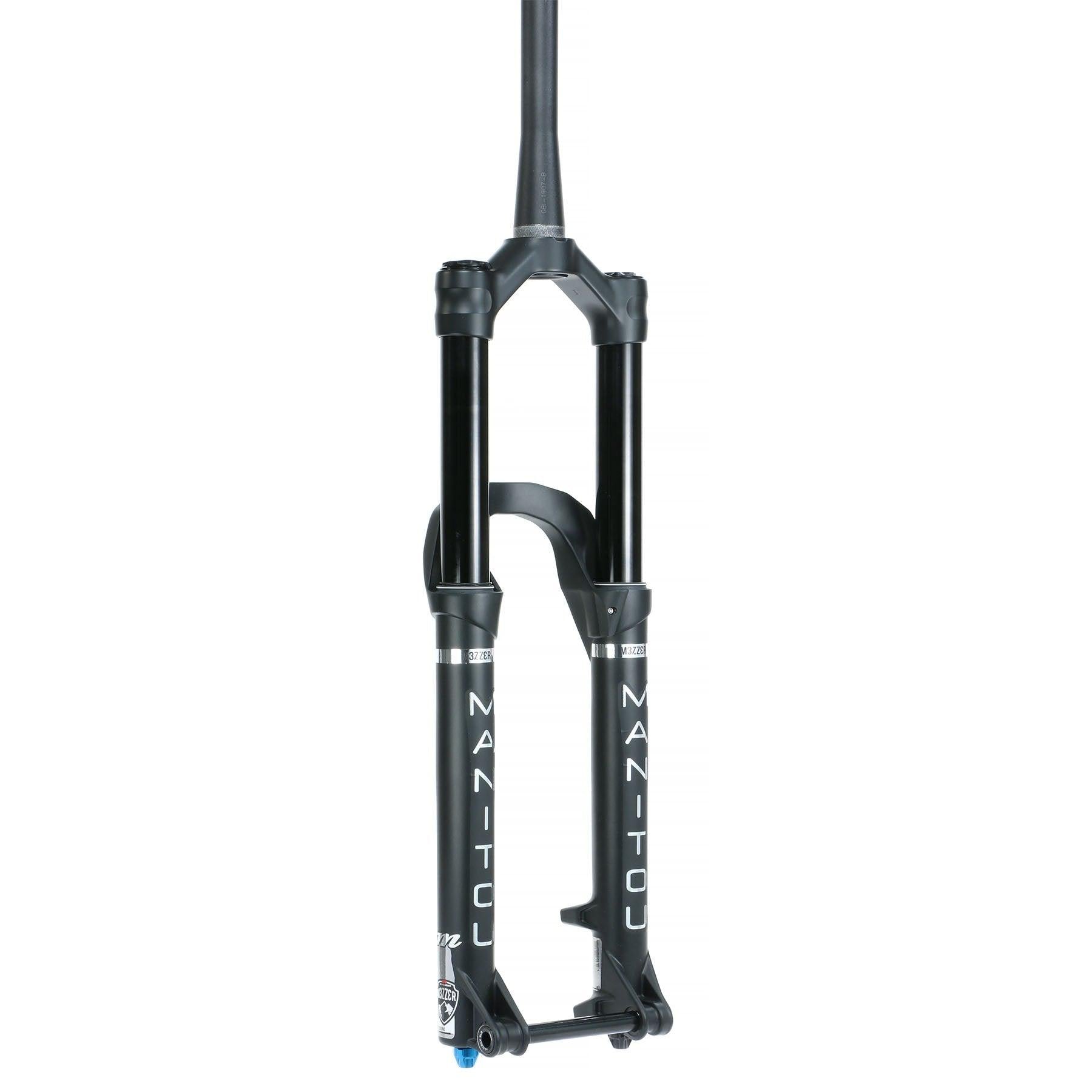

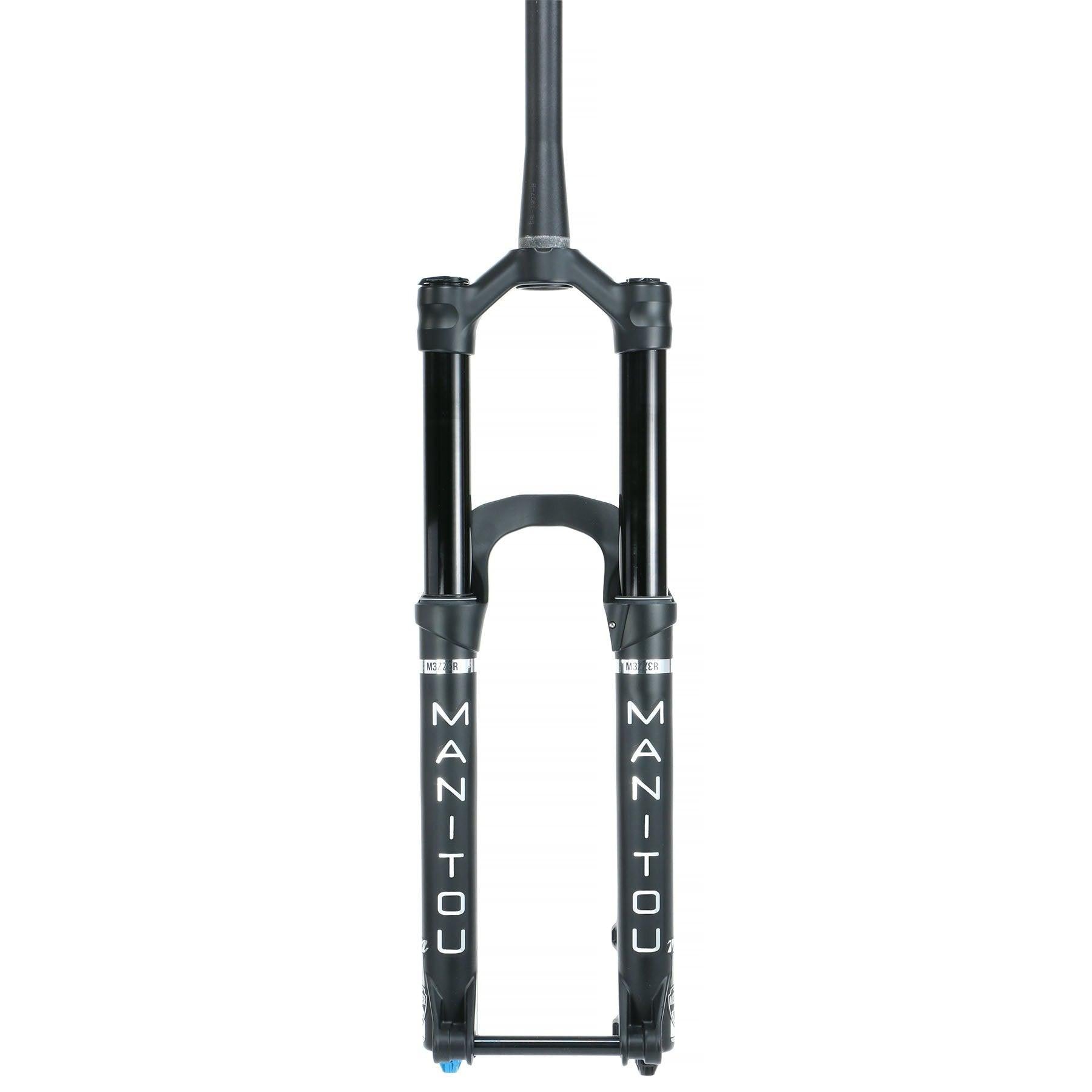

Mezzer Expert
Wheel Size:29"
Travel:160mm
Offset:44mm
Quantity:
Mezzer Expert
29" / 160mm / 44mm
GAMUX
,
Tschachenhofweg 3
8855 Wangen
Switzerland
DESCRIPTION
KEY FEATURES
- 37mm stanchions, Reverse Arch design, and Hexlock SL2 axle combined together result in ultimate stiffness
- Expert Air offers ultimate sensitivity featuring a self-equalizing negative air spring.
- IVA (Incremental Volume Adjuster) allows you to modify your positive air chamber volume by rearranging self contained spacers. You'll never lose a volume spacer again.
- VTT-6P damper provides 6 easy clicks to dial in your damping for all types of terrain.
- Integrated fender can be installed/removed by three small screws threaded into the arch of the fork.
- TSR (Trail Side Relief) valves on the back of the lower legs allow you to bleed off built up air within the lower legs to keep things butter smooth between service intervals
SPECIFICATIONS
- Wheel Size: 27.5", 29"
- Weight: 2030g(27.5") 2062g(29")
- Offset: 37/44OS(27.5") 44/51OS(29")
- Ride Height: 534-574mm (27.5") 554-594mm (29")
- Travel: 140-180mm Internally adjustable in 10mm increments
- Spring: Expert Air w/ IVA
- Compression Damping: VTT
- Rebound Damping: Open Cartridge adjustable TPC
- Adjustments: Air, Air Volume, Rebound, 6-position Compression (Open, Trail, Lock)
- Steerer: 1.5" Tapered
- Crown: Forged Aluminum, Hollow Bore
- Leg Diameter: 37mm
- Leg Material: 7000- Series Butted Wall Aluminum
- Brake Post Mount: 180mm (223mm Max)
- Axle: 15mm x 110mm Hexlock
- Max Tire Size: 69mm w/ Fender 74mm Without
- Options: Fender Kit
- E-Pac: Yes 44OS 140-180 (27.5") 51OS 140-160mm (29")
