Öhlins Mounting Hardware
The STX22/TTX Air and TTX22m Universal MTB shock absorber is mounted with bushings at top and bottom. The shock absorber comes with 2 bushings.
The additional mounting kits consist of bushings, plastic- or aluminium spacers and o-rings to mount the damper to mountain bikes with different mount width and bolts. To determine the required mounting kit for your bike please measure the width of the damper mounting points on your bike.
For 14mm Eyelet

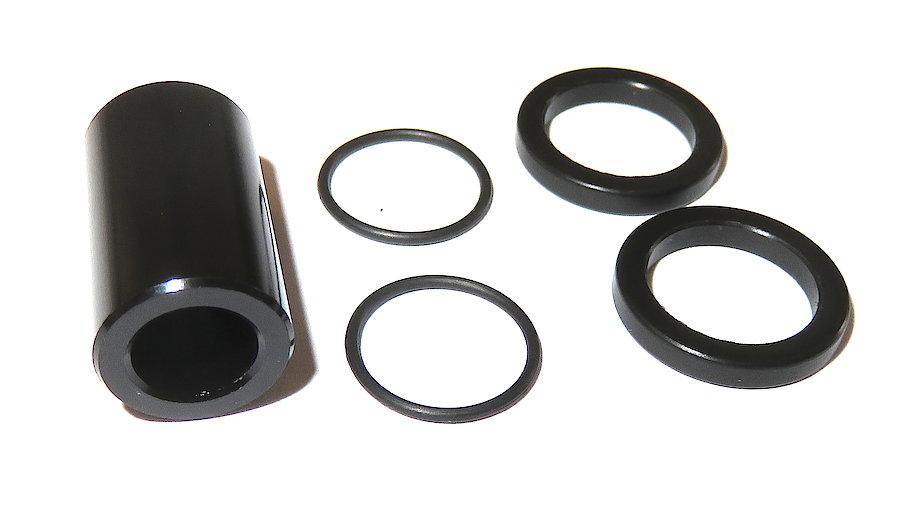

Sample image! Mounting hardware may look different for your bike
- For mounting with bushing
- ID/Inner Diameter: 6 mm to 10 mm
- OD/ Outer Diameter: 14 mm
- Mount width: 15 mm to 60 mm
COMPATIBILITY BUSHING KITS
- 18123-01: Reducer 16 to 14 mm
AVAILABILITY & HANDLING
- Sold and shipped by GAMUX
- Warranty and service available by GAMUX
- Questions and support, drop us an email email@example.com
- shipped within 48-72 hours if in stock or in 21 days depending on availability
