Öhlins
Öhlins Fork Springs RXF36 Coil
Spring Rate:RED - 6.1N/mm (35lb/in)
Quantity:
Öhlins Fork Springs RXF36 Coil
RED - 6.1N/mm (35lb/in)
GAMUX
,
Tschachenhofweg 3
8855 Wangen
Switzerland
Öhlins Fork Springs RXF36 Coil

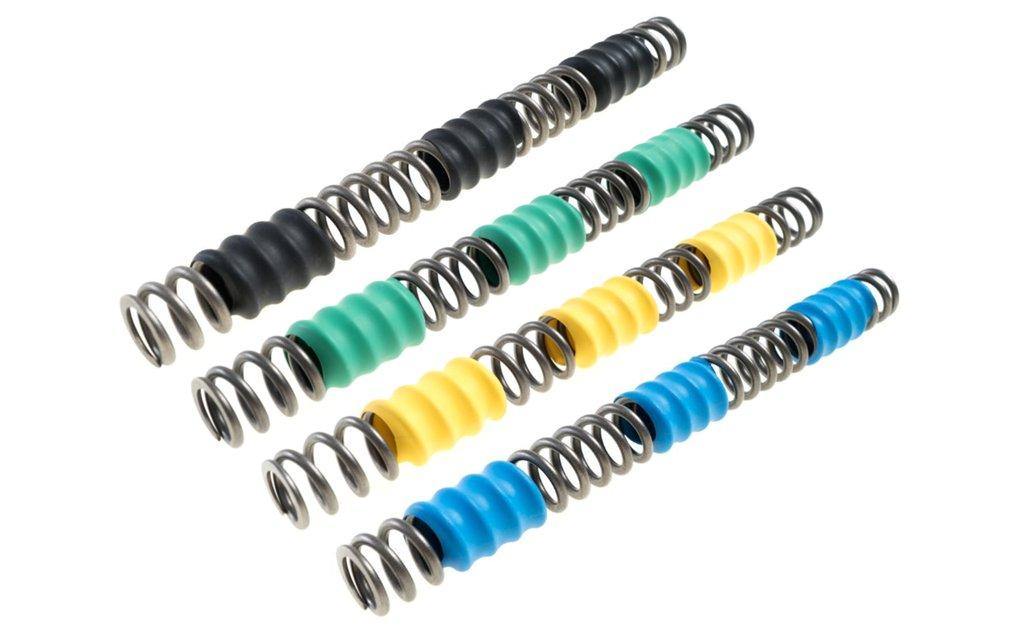

The RXF 36 Coil forks are equipped with 9,7 N/mm (55 lbs/in) spring as a standard. Optional springs are available between 6,1 and 11,5 N/mm (35-65 lbs/in). Spring series 18651-xx.
TECHNICAL SPECIFICATIONS

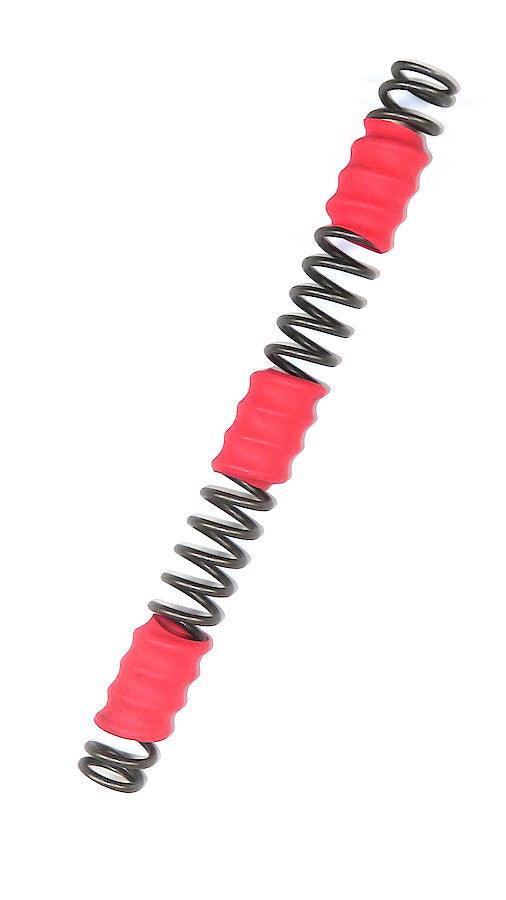

- 18651-01: 6,1 N/mm (35 lbs/in) for rider weight 45 kg (100 lbs)

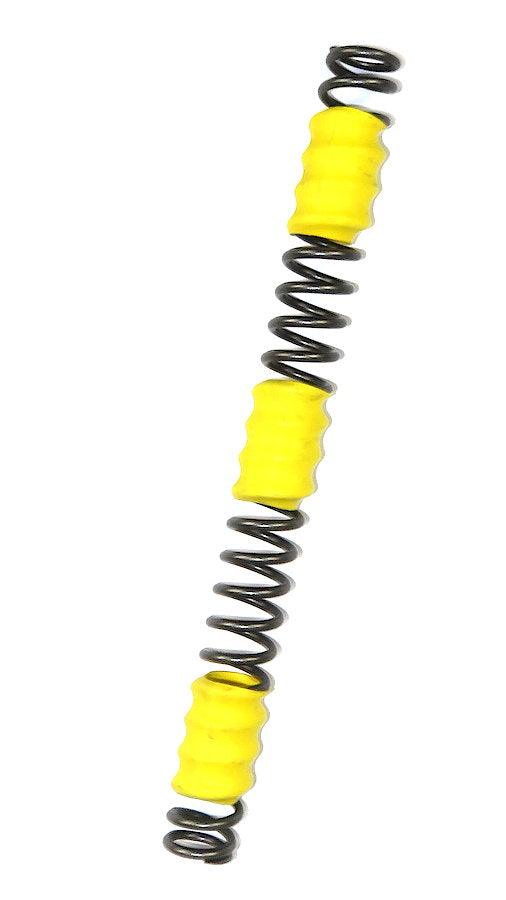

- 18651-02: 7,0 N/mm (40 lbs/in) for rider weight 55 kg (120 lbs)

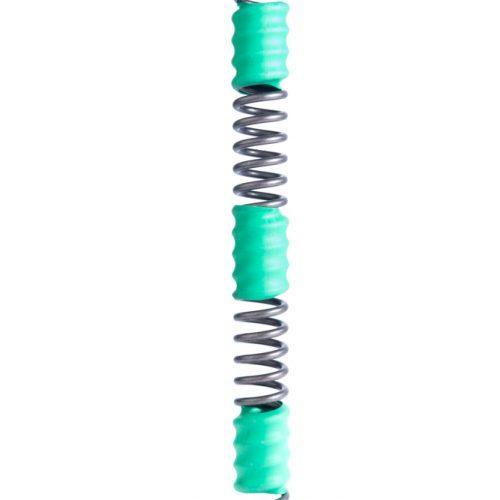

- 18651-03: 7,9 N/mm (45 lbs/in) for rider weight 64 kg (140 lbs)

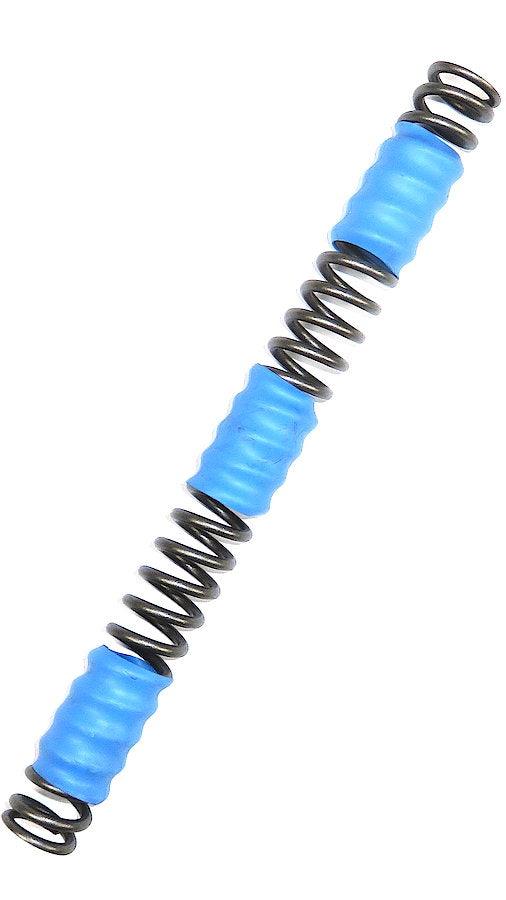

- 18651-04: 8,8 N/mm (50 lbs/in) for rider weight 73 kg (160 lbs)

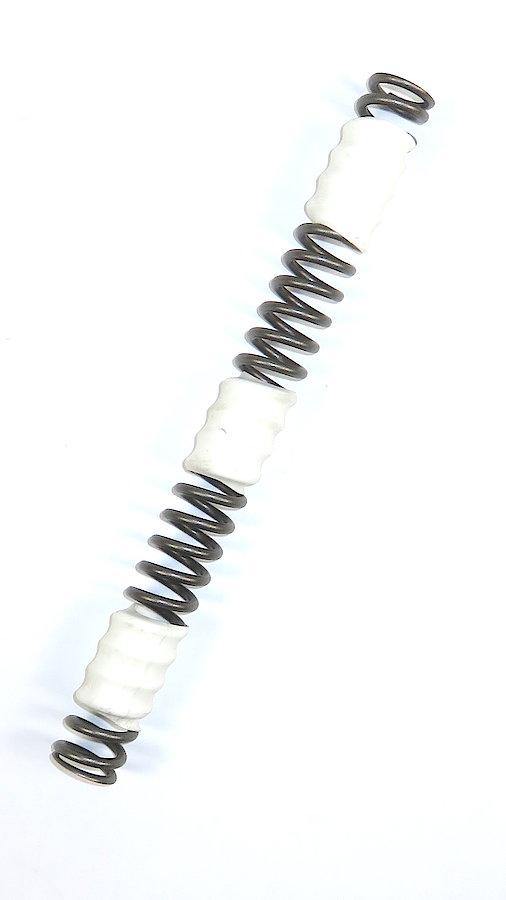

- 18651-05: 9,7 N/mm (55 lbs/in) for rider weight 82 kg (180 lbs)

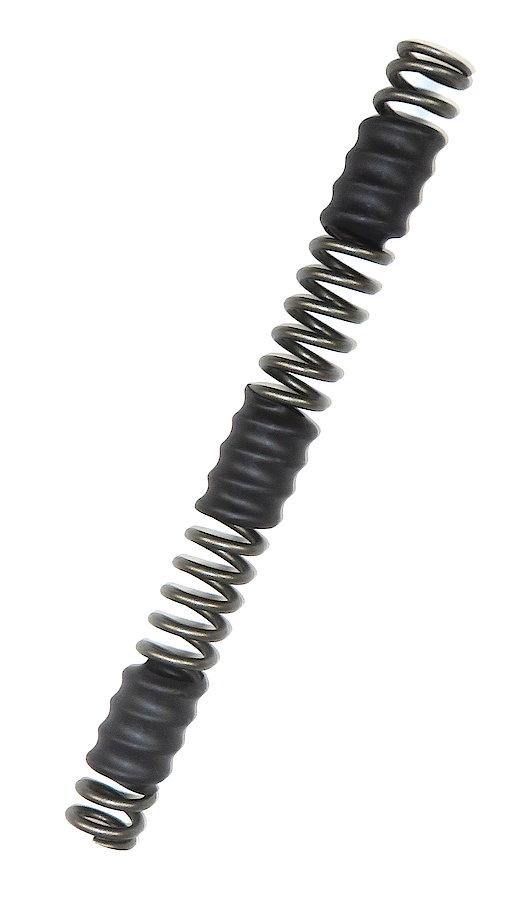

- 18651-06: 10,6 N/mm (60 lbs/in) for rider weight 91 kg (200 lbs)

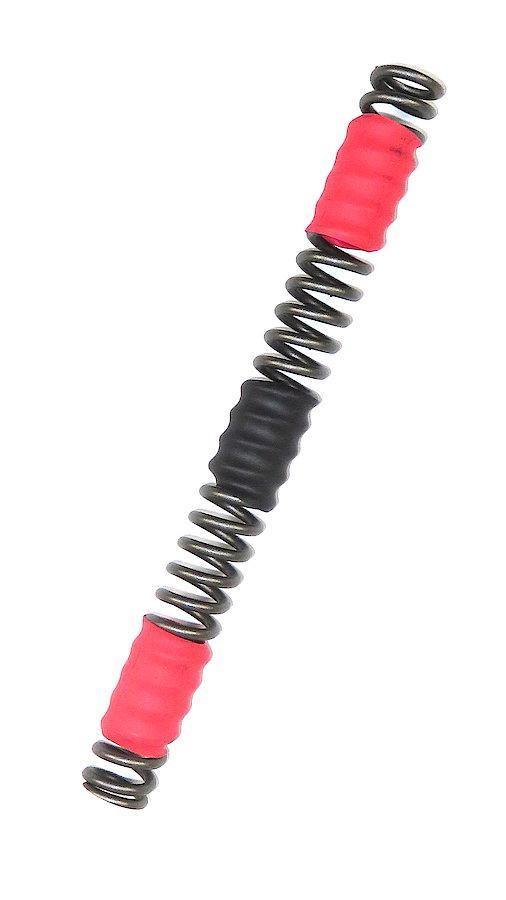

- 18651-07: 11,5 N/mm (65 lbs/in) for rider weight 100 kg (220 lbs)
