ProGuard- Front Bolt On V2

RRP ProGuard Front - BOLT ON V2

The ProGuard Bolt On V2 is the ultimate protection from mud, dirt, and water. With more sizes and fork compatibility, you can customize your ride like never before. Enjoy more bottom out clearance, vertical adjustability, stability, and seal protection. A centre recess gives you more clearance, angled side reliefs give you more CSU arm clearance, and re-profiled brackets provide maximum adjustability. Plus, with larger seal shields, 'super tacky' rubber pads, and increased bolt slot lengths, you can have the ultimate ride experience.

NEW V2 WEIGHTS

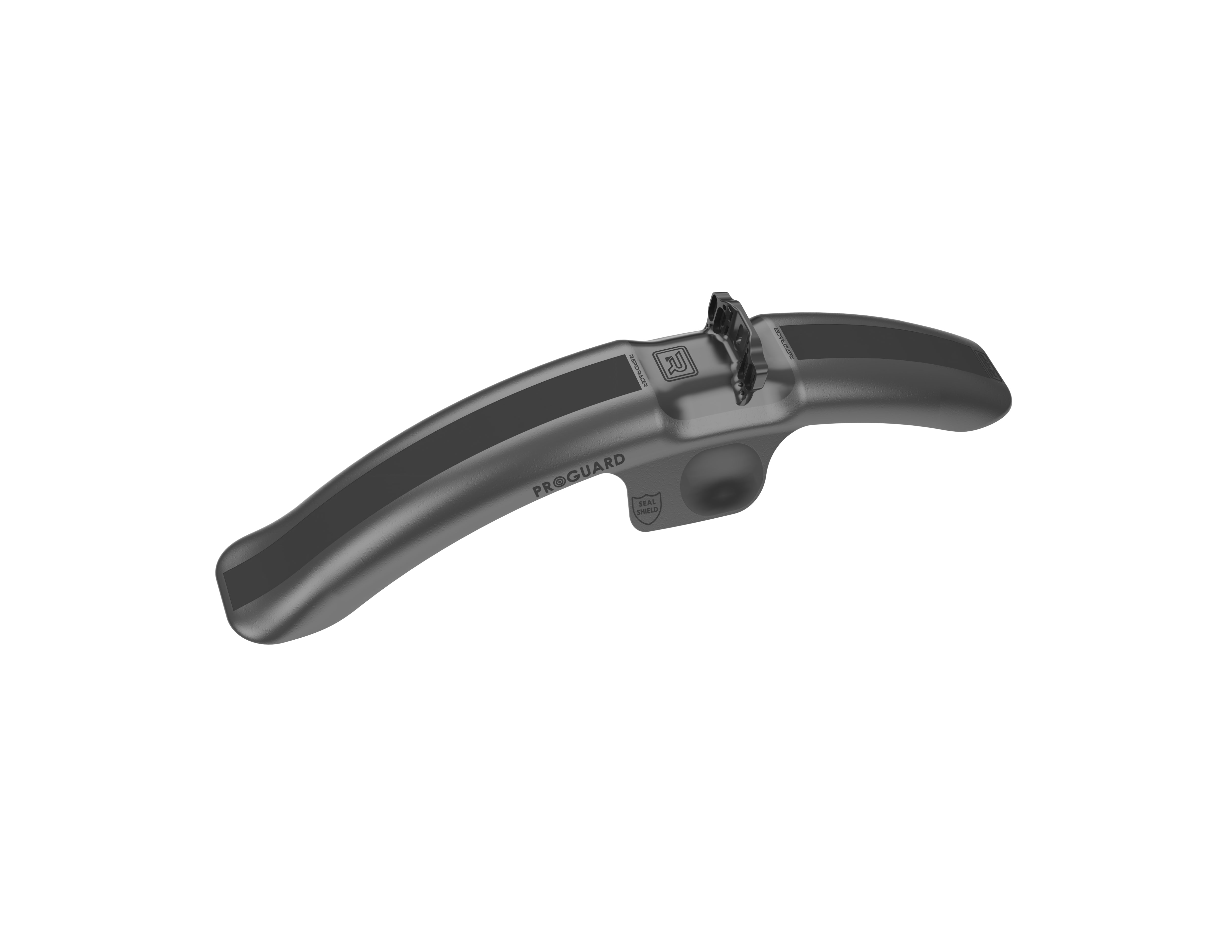

MAX PROTECTION:          137g

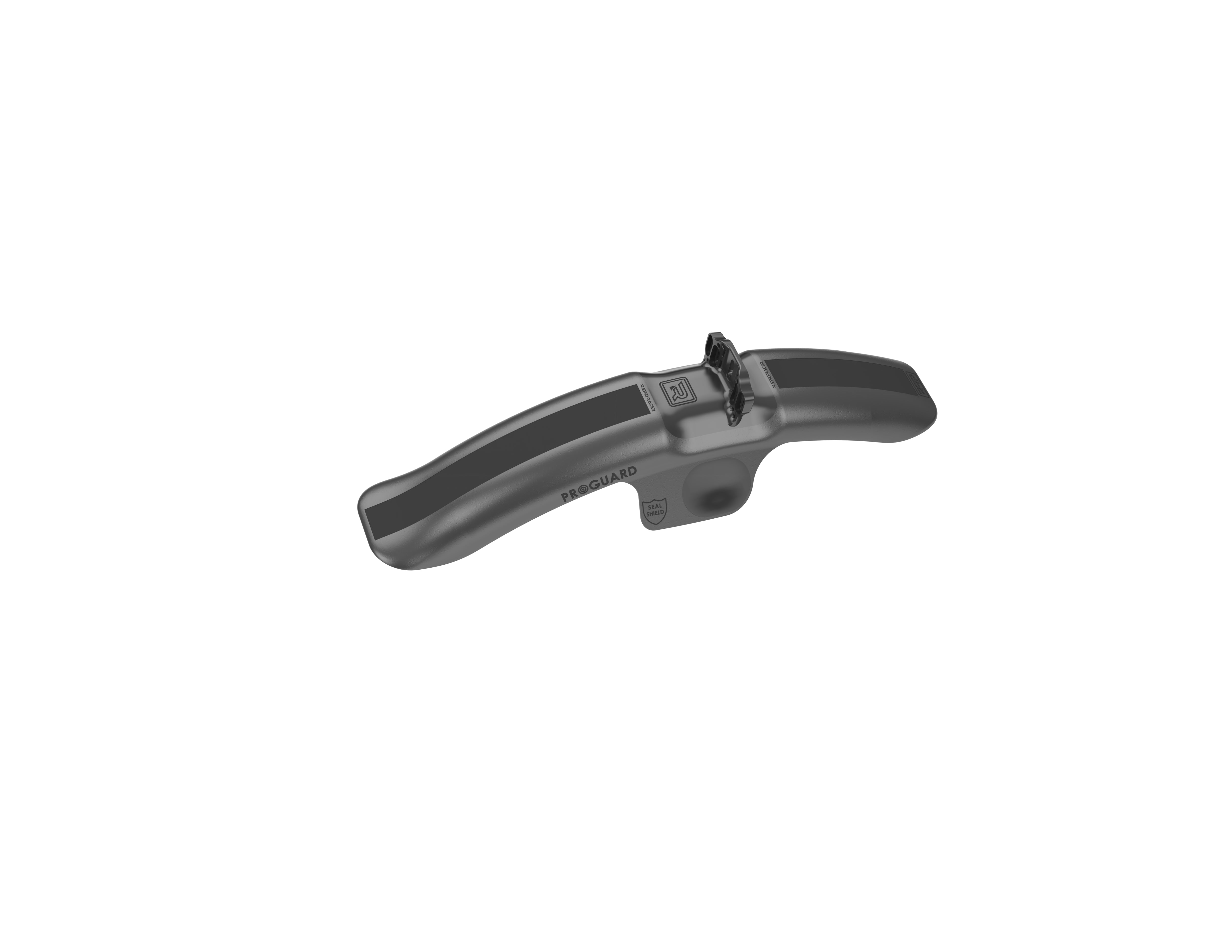

STANDARD:                      121g

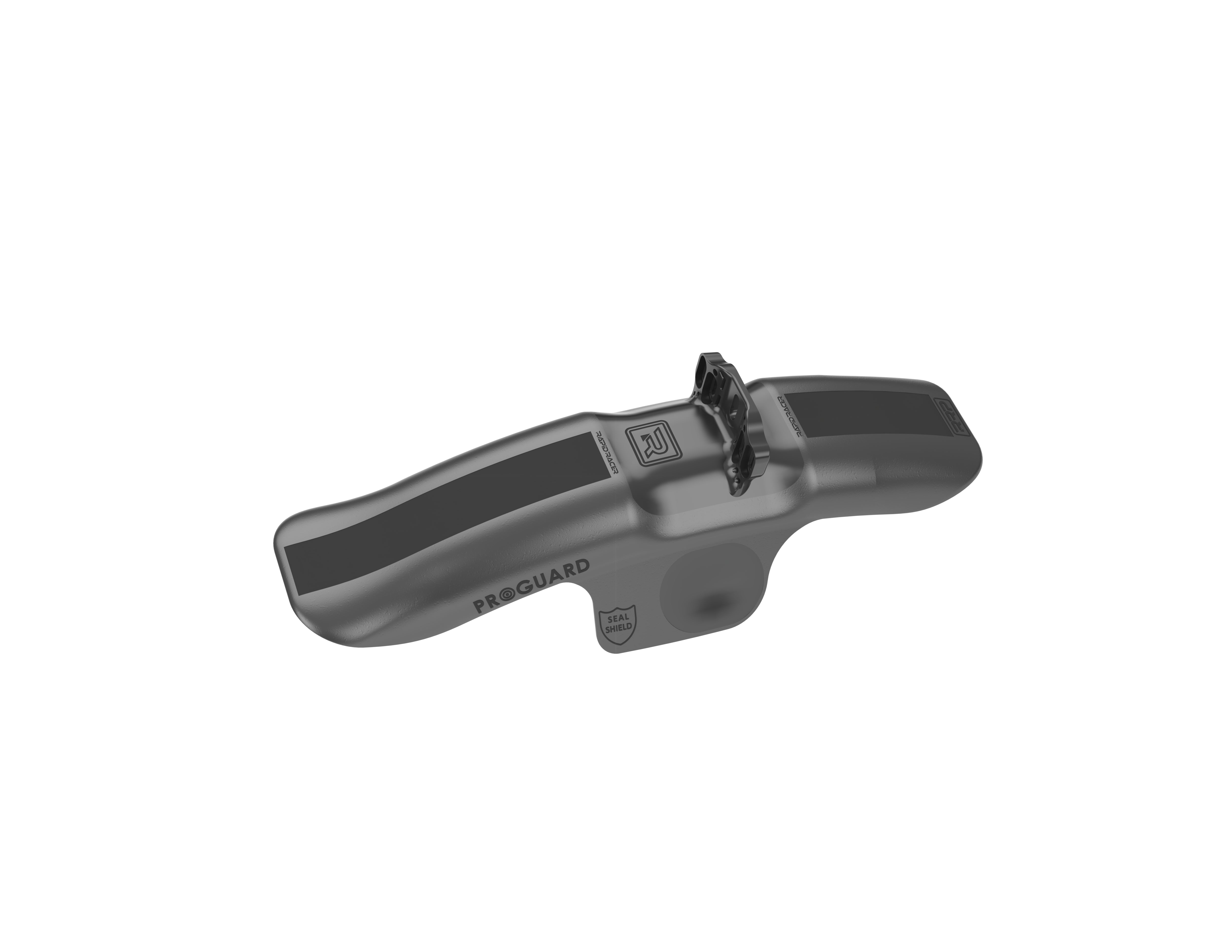

MINI:                                94g

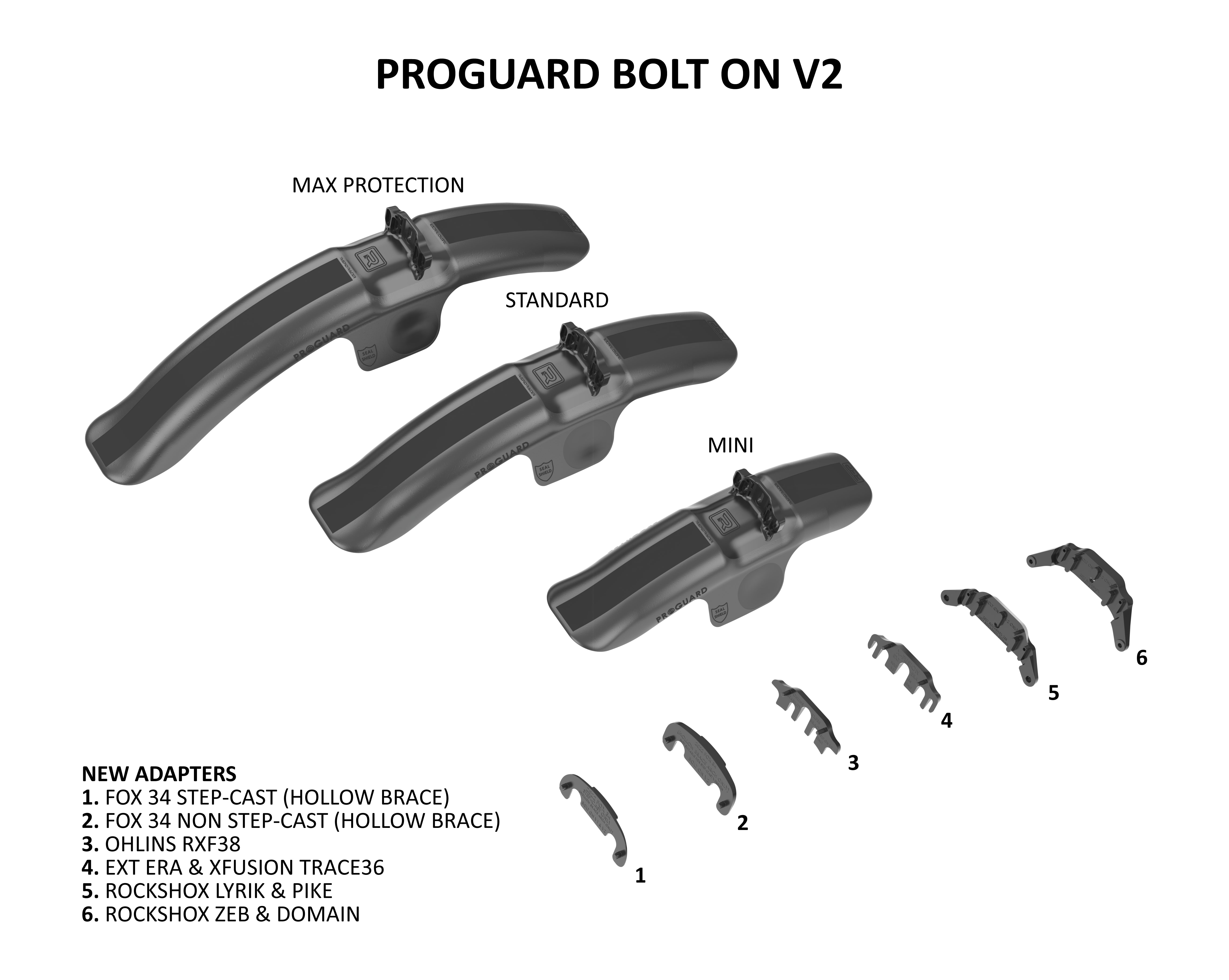

NEW ADAPTER & STABILITY BRACKETS (need to be purchased separately)

There are 6 new brackets for the BOLT ON v2 listed below, some also come with custom bolts:

1. FOX 34 (HOLLOW BRACE) NON STEP-CAST ADAPTER BRACKET
2. FOX 34 (HOLLOW BRACE) STEP-CAST ADAPTER BRACKET
3. ROCKSHOX ZEB / DOMAIN ADAPTER BRACKET
4. ROCKSHOX LYRIK / PIKE ADAPTER BRACKET
5. OHLINS RXF38
6. EXT ERA / XFUSION TRACE36 ADAPTER BRACKET

NEW BOLT PACKS

There are 5 new v2 bolt pack products, most have been redesigned or are completely new and so may not be compatible with the v1 so please see below what versions they’re for:

1. BOLT ON v1 & v2              BOLTS - FOX & MARZOCCHI (2 x M3 x 10.5mm)
2. BOLT ON v2                       BOLTS - ZEB / DOMAIN / LYRIK / PIKE (1 x M3 x 16mm)
3. BOLT ON v1 & v2              BOLTS - OHLINS (3 x M4 x 10mm)
4. BOLT ON v1 & v2              BOLTS - OHLINS RXF34 FITTING KIT (M4 x 8mm / M4 x 14mm Sleeve) - previously called ‘Sleeve Pack’ and is unchanged, this has been removed from mudguard pack and sold separately
5. BOLT ON v2                        BOLTS - EXT ERA / XFUSION BOLTS (2 x M5 x 12mm)
6. BOLT ON v2                        BOLTS - SR SUNTOUR / ROCKSOX / XFUSION (1 x M6 X 12mm)

USER INSTRUCTION

Installation guide and product details
